Concrete screw BTS T

Quick installation of metal profiles and railings to concrete

Product overview

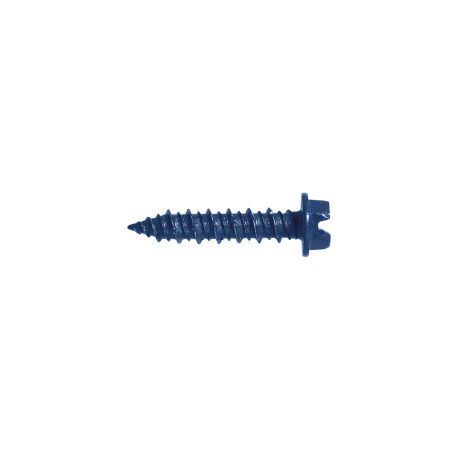

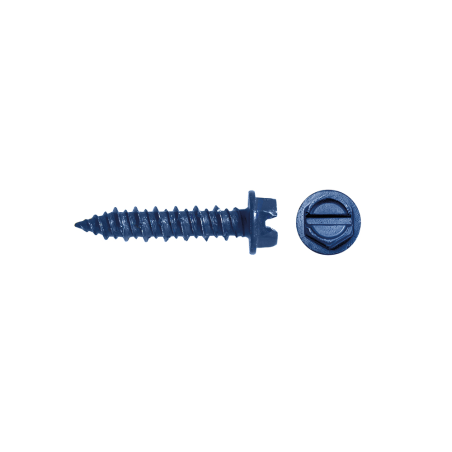

The BTS T hex-head concrete screw is a quick solution for fixing fastening rails and more. approved for multiple use for non-structural applications in cracked concrete and precast concrete hollow core slabs.

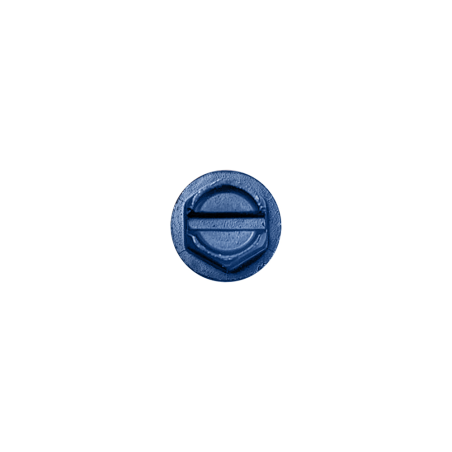

The T-type head features an integral washer (Ø 7/16"), a 1.2" slot recess, and underhead rings. The blue water-based polymer coating guarantess high corrosion resistance, and the shorter screw length minimizes the risk of hitting rebar during installation.

Special BTS accessories allow for a two-step installation: drill and fix without switching tools.

3/16" drill bit included in each box.

List of references

Filters

Anchor length [in]

Reference

9AZ316114INBTST

9AZ316134INBTST

9AZ316214INBTST

Drill hole diameter [in]

3/16"

Anchor length [in]

1-1/4"

1-3/4"

2-1/4"

Material

Steel

Coating

Blue water-based polymer

Packaging units

100

Packaging type.

Box

3 / 3 references

Applications

Fastening rails
Metal profiles
Handrail
Support profiles

Base materials

Suitable materials

Concrete

Concrete block

Wood
