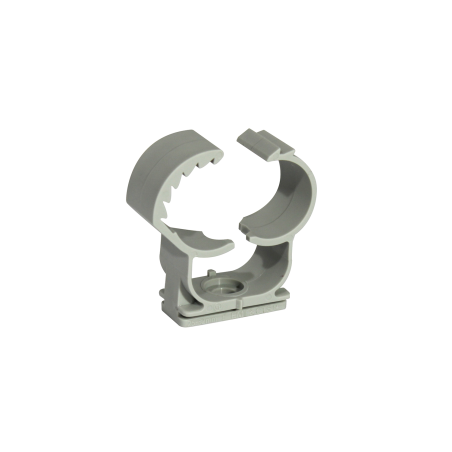

Smart Tap Clamp STC

Smart tap clamp for installations with a concrete screw.

Product overview

CELO Smart Tap Clamp is manufactured with Polyamide 6 modified with elastomer and is multidiameter, fixing different pipes sizes. Produced from high-quality nylon means that the clamps is corrosion and rust resistant and allow for expansion and contraction from the pipes.

Fast installation - Just install the clamp to the wall with a concrete or drywall screw and insert the pipe. No additional tools are required to lock the pipes in place, just push on the tube to lock many clamps at the same time. It can be fixed with screws of 6mm. It can also be installed using channels, such as PVC channels, 10mm wide.

The clamp is UL approved, Kiwa approved, and halogen-free. As the KIWA certification confirms, the clamp can be used for hot water pipes up to +90°C in permanent operation and peaks of +110°C.

Download documents

List of references

Reference

918STC

925STC

932STC

942STC

955STC

965STC

Length [mm]

23.8

Colour

RAL 7035 - Grey

Length [in]

0.94

1.14

1.41

1.77

2.36

2.75

Width [in]

0.78

0.98

Height [in]

1.4

1.79

2.11

2.61

3.15

3.85

Diameter [in]

0.571

0.768

1.346

1.91

2.34

Height [mm]

35.6

45.5

66.3

97.8

Width [mm]

24.9

Clamping range [mm]

14-18

20-25

35-42

48-55

59-65

Packaging units

100

Packaging type.

Box

6 / 6 references

Applications

Holding of electrical and sanitary pipes and conduits.
Optimal performance when fixing warm water pipes.

Further specifications

Key features:

Reduced labout cost

Base materials

Suitable materials

Concrete

Steel

Solid brick

Concrete block
