Concrete screw BTS M, zinc flake coated

Special screw for temporary construction site facilities

Product image of concrete screw BTSM 14-80 zinc flake coated

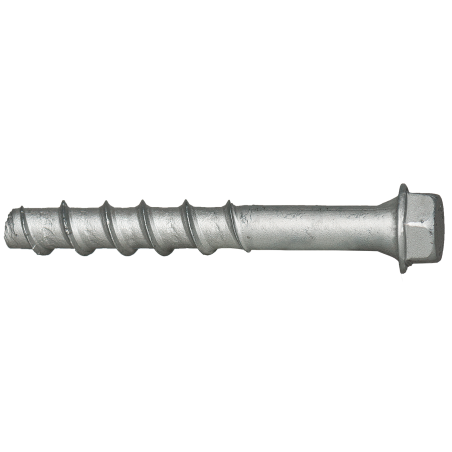

Product image of concrete screw BTSM 14-130 zinc flake coated

Product overview

The concrete screw BTS M with hex-head is a special concrete screw approved for temporary construction site facilities such as inclined supports guardrails and scaffoldings (German Institute for solid concstruction, technical university of Darmstadt).

The approval also regulates the use in fresh concrete (≥ 10 N/mm2), in cracked and non-cracked concrete and for outdoor applications.

The special zinc flake coated concrete screw BTS M can be reused several times. One test sleeve is included in every box. With the supplied test sleeve you can check the reusability: The BTS M may only be reused if max. 3 threads con penetrate into the tube gauge.

Due to the integral washer no additional washer is required and you save time during the installation.

Different head shapes help enable various applications. - View all different concrete screws

Download documents

List of references

Filters

Drill hole depth [mm]

Anchorage depth [mm]

Thickness of fixture [mm]

Anchor length [mm]

Head diameter [mm]

Reference

9ZG14130BTSMB

9ZG1480BTSMB

Screw diameter [mm]

16.6

Drill hole diameter [mm]

Drill hole depth [mm]

85/100/125

Anchorage depth [mm]

75/90/115

Thickness of fixture [mm]

55/40/15

Anchor length [mm]

130

Head diameter [mm]

Material

Steel

Packaging units

Packaging type.

Box

Applications

Inclined formwork pillars
Site facilities
Temporary constructions
Guard rails

Further specifications

Key features:

Can be completely removed for temporary fixings
Reusable - for details see approval

Includes tube gauge in each box to check reusability
Approved for temporary construction facilities such as inclined pillars, guardrails, and scaffolding
Force-free anchoring

Base materials

Suitable materials
