Brass plug ME

Brass plug with internal thread for light and middle loads

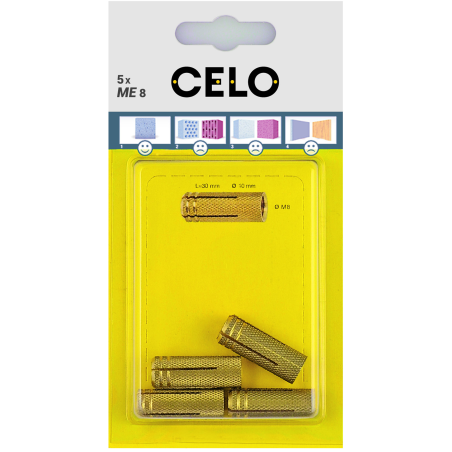

Product image of brass plug ME
Product overview

The brass plug ME offers a reliable solution for fixing light and medium loads for indoor and outdoor use. Due to its corrosion resistance, it can be used in bathrooms e.g. for towel holders.

Show more
Download documents
List of references
Filters
Drill hole diameter [mm]
5
6
8
10
12
15
20
Close
Drill hole depth [mm]
18
22
27
35
39
46
50
Close
Anchorage depth [mm]
16
20
23
30
34
40
44
Close
Anchor length [mm]
16
20
23
30
34
40
44
Close
Screw insertion depth [mm]
≥12.8
≥16
≥18.4
≥24
≥27.2
≥32
≥35.2
Close
Internal thread
M4
M5
M6
M8
M10
M12
M16
Close
Packaging type.
Box
Blister
Close
Reference
9L4ME
9L5ME
9L6ME
9L8ME
9L10ME
9L12ME
9L16ME
5L6ME5
5L8ME4
Drill hole diameter [mm]
5
6
8
10
12
15
20
8
10
Drill hole depth [mm]
18
22
27
35
39
46
50
27
35
Anchorage depth [mm]
16
20
23
30
34
40
44
23
30
Anchor length [mm]
16
20
23
30
34
40
44
23
30
Screw insertion depth [mm]
≥12.8
≥16
≥18.4
≥24
≥27.2
≥32
≥35.2
≥18.4
≥24
Internal thread
M4
M5
M6
M8
M10
M12
M16
M6
M8
Material
Brass
Brass
Brass
Brass
Brass
Brass
Brass
Brass
Brass
Packaging units
100
100
100
50
50
25
25
5
4
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Blister
Blister
Applications
  • Wall rack
  • Curtain rail
  • Clamps
  • Facade substructures
Further specifications

Key features:

  • Fine conical thread and strong knurled surface guarantee high pull-out values and rotation resistance
  • Fixtures easily removable
  • No additional installation tool required
  • Corrosion-resistant anchor suitable for outdoor use
Base materials
Suitable materials
Concrete
Concrete
Natural stone
Natural stone
Solid stone
Solid stone
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Other related products
How to install
Mounting image ME 1
Mounting image ME 2
Mounting image ME 3
Mounting image ME 4
