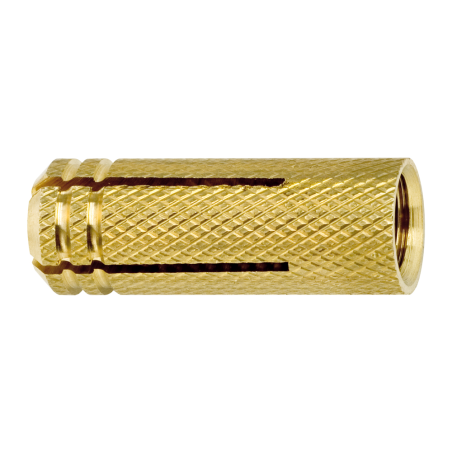

Blister Brass plug ME

Brass plug with internal thread for light an middle loads

Product overview

The brass plug ME in the handy blister offers a reliable solution for fixing light and medium loads for indoor and outdoor use. Due to its corrosion resistance, it can be used in bathrooms e.g. for towel holders.

ME ensures high pull-out values and anti-rotation lock through the fine-running tapered thread as well as a highly knurled outer surface. No special setting tool is necessary, since the spreading takes place by screwing in with a metric screw. The setting depth of the metric screw matches approximately the anchor length (also depends on solidity of base material)- see technical data sheet.

Later a quick removal of the fixture is possible.

Download documents

List of references

Filters

Drill hole diameter [mm]

Drill hole depth [mm]

Anchorage depth [mm]

Plug length [mm]

Internal thread

Reference

5L6ME5

5L8ME4

Drill hole diameter [mm]

Drill hole depth [mm]

Anchorage depth [mm]

Plug length [mm]

Insertion depth [mm]

4/5 plug length

Material

Brass

Internal thread

Packaging units

Packaging type.

Blister

2 / 2 references are shown

Applications

Sanitary fixings
Wall rack
Curtain rail
Clamps
Facade substructures

Further specifications

Key features:

The fine conical thread and a strongly knurled outer surface guarantee high pull-out values and rotation resistance.
Quick removal of fixture
Setting depth of the metric screw matches approximately the anchor length
No special installation tool required
Corrosion resistant anchor, therefore also suitable for outdoor use

Base materials:

Concrete
Natural stone
Solid brick
Solid sand-lime brick

How to install

Step 1

Step 2

Step 3

Step 4
