Blister Plasterboard plug GKDZ

Self-drilling plug for a quick fixing in gypsum boards
Product image of blister plasterboard plug GKDZ mit Schraube

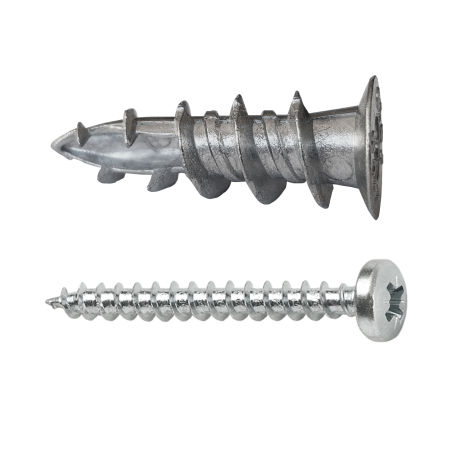

Product image of plasterboard plug GKDZ with screw

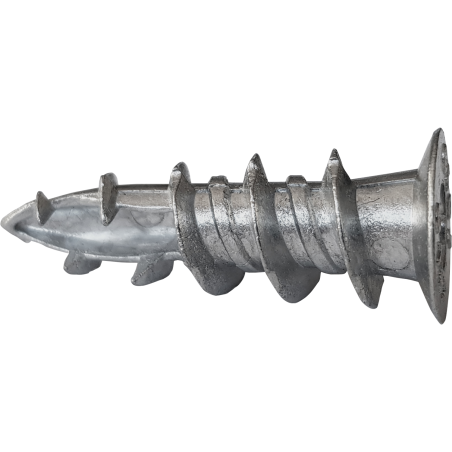

Product image of plasterboard plug GKDZ
Product overview

The self-drilling metal plasterboard plug GKDZ in the handy blister is suitable for very fast fixings in gypsum boards and gypsum fibreboards, as predrilling is not necessary. The GKDZ, made of zinc die-casting has a sharp-edged tip and drills easily through the plasterboard.

Show more
List of references
Filters
Plug length [mm]
37
28
Close
Screw diameter [mm]
4.5
4-5
Close
Insertion depth [mm]
19
22
Close
Panel thickness [mm]
9
9-12.5
Close
Reference
d
J
537GKDZ10
537GKDZSZ6
5GKDZ10
Length [mm]
d
J
37
37
28
Plug length [mm]
d
J
37
37
28
Screw diameter [mm]
d
J
4.5
4.5
4-5
Insertion depth [mm]
d
J
19
19
22
Recess type
d
J
PH2
PH2
PH2
Material
d
J
Zinc die casting
Zinc die casting
Zinc die casting
Panel thickness [mm]
d
J
9
9
9-12.5
Packaging units
d
J
10
6
10
Packaging type.
d
J
Blister
Blister
Blister
A
t
3 / 3 references
Applications
  • Paintings
  • Lighting
  • Light switches
  • Cable channels
Further specifications

Key features:

  • Suitable for fixings in gypsum boards
  • Quick installation (no predrilling) for light loads
  • If the screw is longer than the plug, it simply screws through the tip of the plug
  • Plug and screw are quickly installed with the same bit (PZ2 or PH2)

Base materials:

  • Plasterboards
  • Fibreboards
Other related products
How to install
Step 1
Step 2
Step 3
Mounting image GKDZ 4
