Blister Forced expansion anchor ZA S

Secure sleeve anchor for high loads in non-cracked concrete

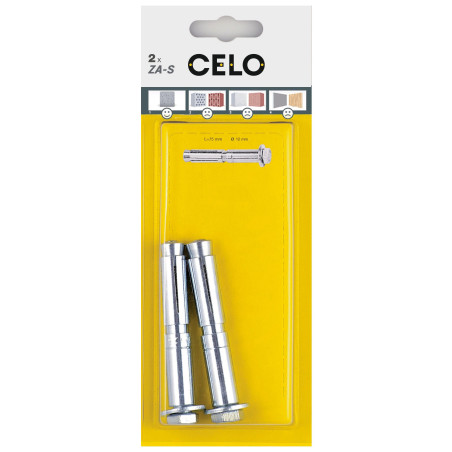

Product image of blister forced expansion anchor ZA
Technical drawing of forced expansion anchor ZA

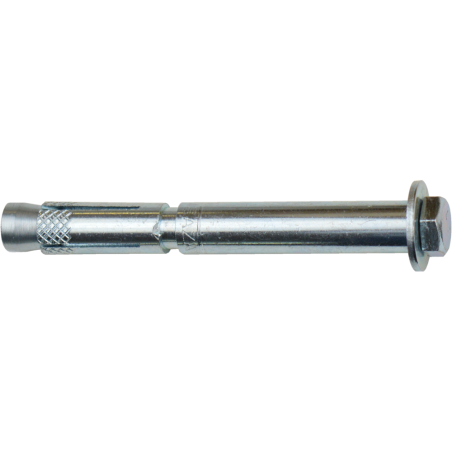

Product image of forced expansion anchor ZA S with hex-head screw
Mounting image ZA 1
Mounting image ZA 2
Mounting image ZA 3
Mounting image ZA 4
Product overview

For heavy-duty fixings in non-cracked concrete the forced expansion anchor ZA S with hex-head screw is the optimal solution. This is confirmed by the ETA assessment Option 7 for non-cracked concrete for ZA 12. Due to the low setting torque and the low setting depth installation is quick and easy. The groove in the sleeve serves to tighten the connecting part firmly to the concrete surface, so-called hollow layer bridging. A setting depth marking is also provided for convenient installation.

Show more
List of references
Filters
Reference
51055ZAS2
51275ZAS2
Close
Drill hole diameter [mm]
10
12
Close
Plug length [mm]
55
75
Close
Thickness of fixture [mm]
10
25
Close
Thread
M6
M8
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Eff. Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Thread
Head type
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
51055ZAS2
51275ZAS2
Drill hole diameter [mm]
10
12
Drill hole depth [mm]
55
55
Eff. Anchorage depth [mm]
40
40
Plug length [mm]
55
75
Thickness of fixture [mm]
10
25
Thread
M6
M8
Head type
10
10
Packaging units
2
2
Packaging type.
Blister
Blister
2 / 2 references are shown
Applications
  • Consoles
  • Handrail
  • Cable trays
Further specifications

Key features:

  • Suitable for heavy fixings in non-cracked concrete
  • Force controlled spreading of the sleeve when the screw or nut is tightened
  • Easy installation as the plug sleeve spreads easily
  • Low setting depth

Base materials:

  • Concrete

Do you have any questions about this product?

Request more info
