Plastic sleeve SH

Plastic sleeve for ResiFIX

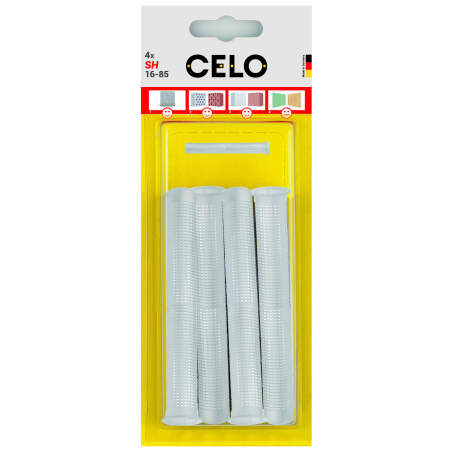

Product image of plastic sleeve SH with centering cap

Product overview

The SH plastic sleeve ensures optimum distribution and uniform curing of the ResiFIX injection mortar in the perforated stone. The centering cap of the plastic sleeve SH simplifies the insertion of the chemical mortar. Choose from our wide range suitable for threaded rods M6-M16. One sleeve size is suitable for several anchor rod diameters.

The SH plastic sleeve ensures optimum distribution and uniform curing of the ResiFIX injection mortar in the perforated stone. The centering cap of the plastic sleeve SH simplifies the insertion of the chemical mortar. Choose from our wide range suitable for threaded rods M6-M16. One sleeve size is suitable for several anchor rod diameters.

In combination with the ResiFIX injection mortar and the RESI AST anchor rod, the SH plastic sleeve is ETA-approved for heavy-duty fixings in perforated brick and thus guarantees highest user safety. Note, that the system (resin, sleeve and anchor rod) is only approved completely if approved components are used.

Available in boxes and practical blisters.

Show more

Download documents

List of references

Filters

Drill hole diameter [mm]

Plug length [mm]

Drill hole depth [mm]

Suitable for

Packaging type.

Reference

d

J

91260SH

91280SH

913100SH

91585SH

915130SH

92085SH

920130SH

920200SH

51280SH4

51685SH4

515130SH4

52085SH4

Diameter [mm]

d

J

12

12

14

15

15

20

20

20

12

16

16

20

Length [mm]

d

J

60

80

100

85

130

85

130

200

80

85

130

85

Drill hole diameter [mm]

d

J

12

12

-

16

16

20

20

20

12

16

16

20

Plug length [mm]

d

J

60

80

-

85

130

85

130

200

80

85

130

85

Drill hole depth [mm]

d

J

65

85

-

90

135

90

135

205

65

65

135

90

Suitable for

d

J

Anchor rod M6,M8

Anchor rod M6,M8

Anchor rod M10

Anchor rod M8, M10

Anchor rod M8, M10

Anchor rod M12,M16

Anchor rod M12,M16

Anchor rod M12,M16

Anchor rod M6,M8

Anchor rod M8, M10

Anchor rod M8, M10

Anchor rod M12-M16

Material

d

J

Polypropylene

Polypropylene

-

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Packaging units

d

J

24

24

12

12

12

12

20

20

4

4

4

4

Packaging type.

d

J

Box

Box

Box

Box

Box

Box

Box

Box

Blister

Blister

Blister

Blister

A

t

12 / 12 references

Applications

Steel constructions
Canopies
Consoles
Machines
Guard rails
Doors
Wood constructions
Facade substructures

Further specifications

Key features:

ETA-approved in connection with injection mortar ResiFIX and anchor rod RESI AST

Centering cap for perfect positioning of the anchor rod
One diameter is suitable for several anchor rod diameters

Base materials

eta

Suitable materials with approvals

Hollow brick

Hollow brick

Other suitable materials

Hollow sand-lime block

Hollow sand-lime block

Lightweight hollow concrete block

Lightweight hollow concrete block

Other related products

How to install
