Metal washer AW for nailers

Quick mounting option for installations with a nailer

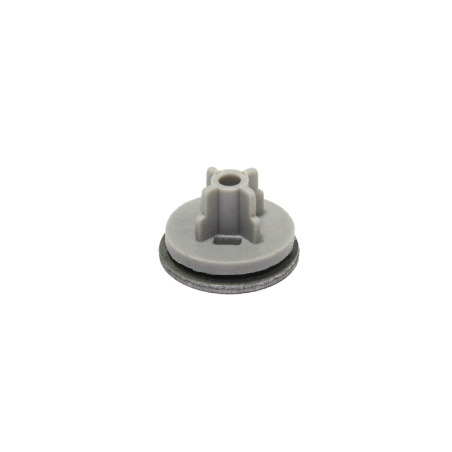

Product Image AW Metal Washer for Gas Nailers
Product Image AW Metal Washer for Nailers

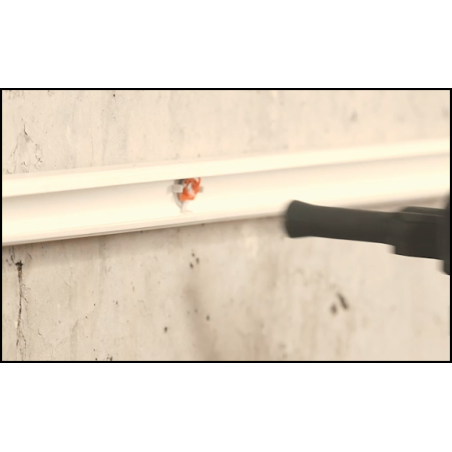

Mounting Image AW Metal Washer 4
Product overview

​​​The metal washer AW is a quick mounting option for fixing cable ducts, foils, sealing membranes, fleece, etc. Due to its special design, this accessory gets fixed in the nose of the nailer and can be installed with one hand.

Show more
Download documents
View videos
List of references
Reference
915AW
925AW
Diameter [mm]
15
25
Length [mm]
1
1
Height [mm]
5
5
Sheet thickness [mm]
1
0.8
Coating
Galvanised
Galvanised
Screw material
Steel
Steel
Packaging units
200
200
Packaging type.
Box
Box
A
t
2 / 2 references
Applications
  • Insulation panels
  • Cable channels
  • Metal sheets
Further specifications

Key features:

  • Quick and simple installation, saving time and money
  • Install in only 10 seconds
  • Fire approved with XHA nails
Base materials
Suitable materials
Steel beam/purlin
Steel beam/purlin
Concrete
Concrete
Concrete block
Concrete block
Solid brick
Solid brick
Wood
Wood
Other related products
How to install
Mounting Image AW Metal Washer 2
Mounting Image AW Metal Washer 3
Watch the video
Useful tips
