Bolt anchor BA plus

The standard anchor for heavy-duty applications in concrete

Product image of bolt anchor BAP for non-cracked concrete

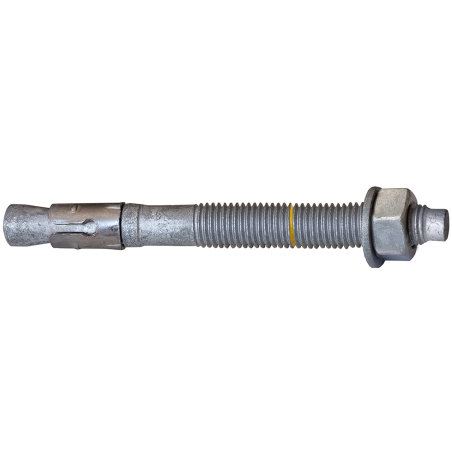

Product image of bolt anchor BA Plus M12-M16 HD hot dip galvanised for non-cracked concrete
Product image of bolt anchor BA Plus M6-M10 HD hot dip galvanised for non-cracked concrete
Product overview

The bolt anchor BA plus is your proven standard anchor for heavy loads. Available in galvanized or hot-dipped versions in diameters M6-M20, the BA plus is ideal for a wide range of fastenings, particularly in non-cracked concrete and, to a limited extent, in dense natural stone (up to M8). All sizes feature a long thread for greater application flexibility. The yellow setting depth marking ring and effective thread protection during hammering enhance user-friendliness. High load values ensure your safety.

Show more
Download documents
View videos
List of references
Filters
Drill hole diameter [mm]
6
8
10
12
16
20
Close
Drill hole depth [mm]
38
48
40
60
42
55
65
58
90
75
110
88
130
Close
Eff. Anchorage depth [mm]
25
35
45
27
40
50
38
70
85
58
100
Close
Anchor length [mm]
45
60
80
100
50
75
85
95
115
135
92
105
125
145
175
70
110
120
130
150
180
200
160
215
270
Close
Thickness of fixture [mm]
5
10
30
50
20
70
17
100
2
80
15
60
75
130
Close
Thread
M6
M8
M10
M12
M16
M20
Close
Material
Steel
Stainless steel A4
Stainless steel A2
Close
Packaging type.
Box
Blister
Close
Reference
9645BAP
9660BAP
9680BAP
96100BAP
9850BAP
9860BAP
9875BAP
9885BAP
9895BAP
98115BAP
98135BAP
91060BAP
91075BAP
91085BAP
91092BAP
910105BAP
910125BAP
910145BAP
10145BAP
910175BAP
91270BAP
912110BAP
912120BAP
912130BAP
912150BAP
12150BAP
912180BAP
91695BAP
16135BAP
916135BAP
916150BAP
916180BAP
916200BAP
920110BAP
920160BAP
920215BAP
920270BAP
9HD645BAP
9HD660BAP
9HD850BAP
9HD875BAP
9HD895BAP
9HD8115BAP
9HD8135BAP
9HD1060BAP
9HD1085BAP
9HD1092BAP
9HD10105BAP
9HD10125BAP
9HD10175BAP
9HD12110BAP
9HD12120BAP
9HD12130BAP
9HD12150BAP
9HD12180BAP
9HD16135BAP
9HD16150BAP
9HD16180BAP
9X875BAP
9X895BAP
9X8115BAP
9X1085BAP
9X1092BAP
9X10105BAP
9X10125BAP
9X10145BAP
9X12110BAP
9X12120BAP
9X12130BAP
9X12150BAP
9X16135BAP
9X16150BAP
9SX875BAP
9SX895BAP
9SX1092BAP
9SX10105BAP
9SX10125BAP
9SX12110BAP
9SX12130BAP
9SX12150BAP
9SX16150BAP
510120BA2
5885BA2
51090BA2
Drill hole diameter [mm]
6
6
6
6
8
8
8
8
8
8
8
10
10
10
10
10
10
10
10
10
12
12
12
12
12
12
12
16
16
16
16
16
16
20
20
20
20
6
6
8
8
8
8
8
10
10
10
10
10
10
12
12
12
12
12
16
16
16
8
8
8
10
10
10
10
10
12
12
12
12
16
16
8
8
10
10
10
12
12
12
16
10
8
10
Drill hole depth [mm]
38
48
48
48
40
60
60
60
60
60
60
42
55
65
65
65
65
65
65
65
58
90
90
90
90
90
90
75
110
110
110
110
110
88
130
130
130
38
48
40
60
60
60
60
42
65
65
65
65
65
90
90
90
90
90
110
110
110
60
60
60
65
65
65
65
65
90
90
90
90
110
110
60
60
65
65
65
90
90
90
110
65
60
65
Eff. Anchorage depth [mm]
25
35
35
35
25
45
45
45
45
45
45
27
40
50
50
50
50
50
50
50
38
70
70
70
70
70
70
50
85
85
85
85
85
58
100
100
100
25
35
25
45
45
45
45
27
50
50
50
50
50
70
70
70
70
70
85
85
85
45
45
45
50
50
50
50
50
70
70
70
70
85
85
45
45
50
50
50
70
70
70
85
50
45
50
Anchor length [mm]
45
60
80
100
50
60
75
85
95
115
135
60
75
85
92
105
125
145
145
175
70
110
120
130
150
150
180
95
135
135
150
180
200
110
160
215
270
45
60
50
75
95
115
135
60
85
92
105
125
175
110
120
130
150
180
135
150
180
75
95
115
85
92
105
125
145
110
120
130
150
135
150
75
95
92
105
125
110
130
150
150
125
85
92
Thickness of fixture [mm]
5
10
30
50
5
10
10
20
30
50
70
10
10
10
17
30
50
70
-
100
2
10
20
30
50
50
80
10
15
15
30
60
80
10
20
75
130
5
10
5
10
30
50
70
10
10
17
30
50
100
10
20
30
50
80
15
30
60
10
30
50
10
17
30
50
70
10
20
30
50
15
30
10
30
17
30
50
10
30
50
30
50
20
17
Thread
M6
M6
M6
M6
M8
M8
M8
M8
M8
M8
M8
M10
M10
M10
M10
M10
M10
M10
M10
M10
M12
M12
M12
M12
M12
M12
M12
M16
M16
M16
M16
M16
M16
M20
M20
M20
M20
M6
M6
M8
M8
M8
M8
M8
M10
M10
M10
M10
M10
M10
M12
M12
M12
M12
M12
M16
M16
M16
M8
M8
M8
M10
M10
M10
M10
M10
M12
M12
M12
M12
M16
M16
M8
M8
M10
M10
M10
M12
M12
M12
M16
M10
M8
M10
Material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
-
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
-
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A4
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Stainless steel A2
Steel
Steel
Steel
Packaging units
100
100
100
100
100
50
50
50
50
40
40
50
50
40
40
25
25
25
2
25
40
20
20
20
20
2
20
15
2
10
10
10
10
10
10
6
25
100
100
100
50
50
40
40
50
40
40
25
25
25
20
20
20
20
20
10
10
10
50
50
40
40
40
25
25
25
20
20
20
20
10
10
50
50
40
25
25
20
20
20
10
2
2
2
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Blister
Blister
Blister
Applications
  • Steel supports
  • Attaching steel structures
  • Guard rails
  • Facade substructures
  • Machines
  • Doors
  • Pipelines
  • Cable trays
  • Storage racks
Further specifications

Key features:

  • ETA-approved for quick installation in non-cracked concrete and partly in dense natural stone (up to M8)
  • Long thread for more flexibility
  • Conforms to the technical requirements for thermal installations for buildings 1027/2007 (RITE)
Base materials
eta
Suitable materials with approvals
Concrete
Concrete
Other suitable materials
Dense natural stone
Dense natural stone
Other related products
How to install
Mounting image BAP 1
Mounting image BAP 2
Mounting image BAP 3
Mounting image BAP 4
Mounting image BAP 5
Mounting image BAP 6

Do you have any questions about this product?

Request more info
