Blister Quick-fix anchor BA plus

The standard anchor for heavy-duty in concrete
Product image of blister quick-fix anchor BAP for non-cracked concrete

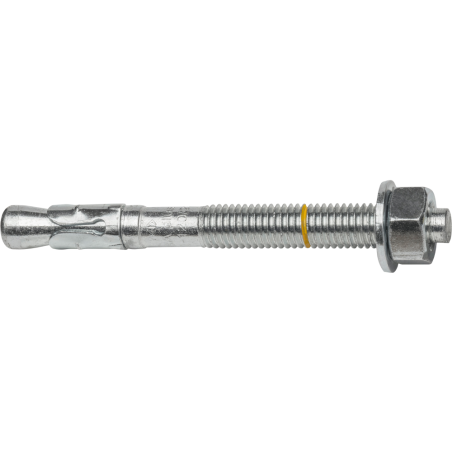

Product image of quick-fix anchor BAP for non-cracked concrete
Technical drawing of quick-fix anchor BAP
Mounting image BA 1
Mounting image BA 2
Mounting image BA 3
Mounting image BA 4
Product overview

The quick-fix anchor BA plus in the handy blister is your proven standard anchor for heavy loads. It fulfills the crieteria of the ETA assessment for use in non-cracked concrete (option 7).

Show more
List of references
Filters
Reference
5885BA2
51090BA2
510120BA2
Close
Drill hole diameter [mm]
8
10
Close
Drill hole depth [mm]
60
65
Close
Eff. Anchorage depth [mm]
45
50
Close
Plug length [mm]
85
92
125
Close
Thickness of fixture [mm]
20
17
50
Close
Packaging units
2
Close
Packaging type
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Eff. Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
5885BA2
51090BA2
510120BA2
Length
0
0
0
Diameter
0
0
0
Drill hole diameter [mm]
8
10
10
Drill hole depth [mm]
60
65
65
Eff. Anchorage depth [mm]
45
50
50
Plug length [mm]
85
92
125
Thickness of fixture [mm]
20
17
50
Packaging units
2
2
2
Packaging type
Blister
Blister
Blister
3 / 3 references are shown
Applications
  • Steel supports
  • Attaching steel structures
  • Guard rails
  • Facade substructures
  • Machines
  • Doors
  • Pipelines
  • Cable trays
  • Storage racks
Further specifications

Key features:

  • ETA-approved for quick installation in non-cracked concrete and partly in dense natural stone (up to M8)
  • Embedment depth marking ring
  • Long thread for more flexibility

Base materials:

  • Concrete
  • Dense natural stone
