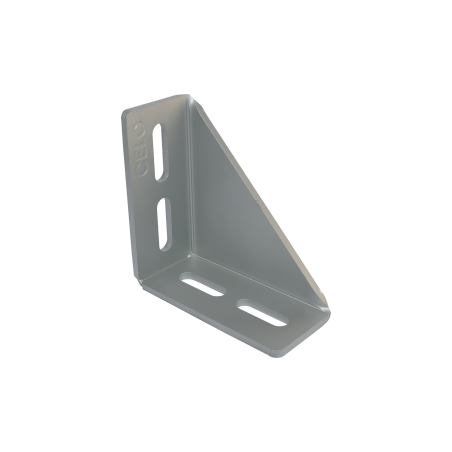

Reinforced bracket with 4 holes HLS

Reinforced bracket for joining HLS profiles
Reinforced bracket with 4 holes HLS
Reinforced bracket with 4 holes HLS
Product overview

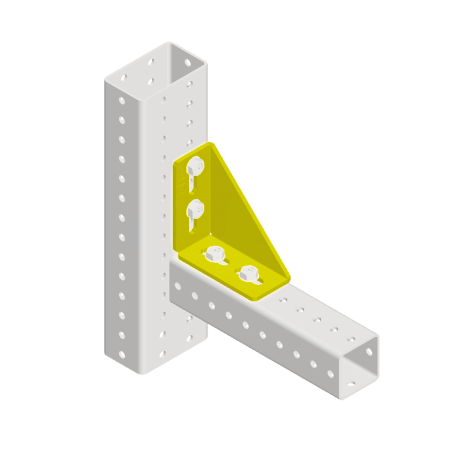

Component designed for perpendicular assembly in HLS systems. This bracket stands out for its reinforced plate design, which maximizes load transfer between profiles.
Its versatility allows direct assembly between profiles from the HLS range, enabling the scalability of complex modular structures. Manufactured from 5 mm thick steel, it offers exceptional mechanical strength.
It includes 4 slotted holes that simplify installation by allowing dimensional tolerances to be corrected on site.
The final finish includes KlimaProof technology, a high‑performance coating that guarantees durability in outdoor and aggressive environments, exceeding 1000 hours in salt spray chamber tests.

Download documents
List of references
Reference
9L23HLS6090ESCR
Length [mm]
120
Width [mm]
50
Height [mm]
120
Thickness
5
Packaging units
1
Packaging type.
Unpackaged
Applications
  • Air conditioning pipes
  • Air conditioner
  • Profile strut
  • Industrial HVAC
  • Machinery pipe supports
