EPDM rubber lined KlimaProof pipe clamp M8+M10 RI

EPDM rubber lined KlimaProof pipe clamp M8+M10
EPDM rubber lined KlimaProof pipe clamp M8+M10 RI
Product overview

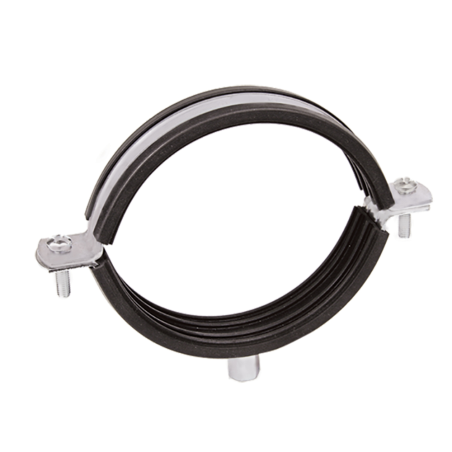

The CELO RI M8 + M10 clamp with KlimaProof® coating is designed to provide professional, robust, and silent fastening, even in extreme outdoor conditions. It features a welded cross nut with a guaranteed resistance of 6 kg·m, screws with combined Pozi + slotted head, and double reinforcement ribs for high load capacity.

Show more
List of references
Filters
Height [mm]
45
49.5
60
64
70.5
81.5
86.5
102.5
111.5
116
122
135.5
145.5
1615
184.5
275
Close
Thickness [mm]
1.5
2
Close
Width [mm]
20
25
Close
Reference
d
J
9L2322RI
9L2328RI
9L2335RI
9L2340RI
9L2348RI
9L2354RI
9L2360RI
9L2375RI
9L2390RI
9L23100RI
9L23110RI
9L23125RI
9L23140RI
9L23160RI
9L23200RI
9L23250RI
Diameter [mm]
d
J
22
28
35
40
48
54
60
75
90
100
110
125
140
160
200
250
Length [mm]
d
J
62
70.5
79
88
94
102
109
133
145
155
169
178
198.5
229
262
290
Height [mm]
d
J
45
49.5
60
64
70.5
81.5
86.5
102.5
111.5
116
122
135.5
145.5
1615
184.5
275
Thickness [mm]
d
J
1.5
1.5
1.5
1.5
1.5
1.5
1.5
2
2
2
2
2
2
2
2
2
Width [mm]
d
J
20
20
20
20
20
20
20
25
25
25
25
25
25
25
25
25
Packaging units
d
J
100
100
100
100
100
50
50
50
50
50
50
50
50
40
40
30
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
A
t
16 / 16 references
Applications
  • Metal pipes
  • PVC pipes
  • Drainage pipes
  • Steel pipes
Base materials
  • Metal profile
  • Aluminium profile
  • Plastic profile
  • PVC profile
