Multitub channel PTTR

Channel designed for Multitub clamp
Multitub channel PTTR
Multitub channel PTTR
Multitub channel PTTR
Product overview

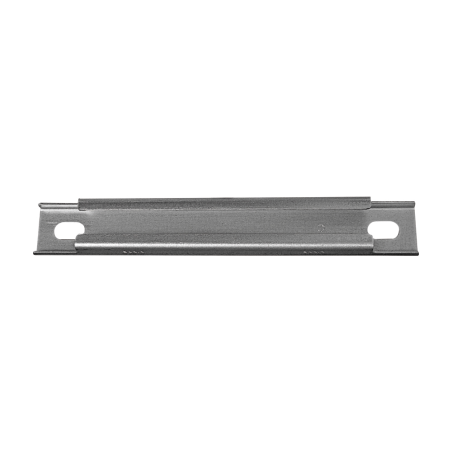

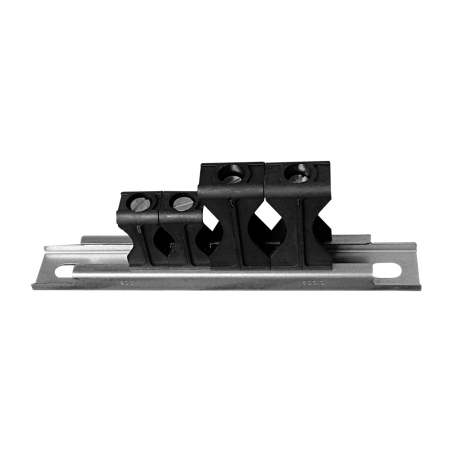

Metal channel made of galvanized steel, designed to perform perfectly with the Multitub MT clamp. It has a side die hole to simplify the anchoring installation. It also has round edges to avoid the cut of the cables.

Show more
List of references
Reference
d
J
1000PTTR
250PTTR
400PTTR
500PTTR
600PTTR
800PTTR
Length [mm]
d
J
1000
250
400
500
600
800
Screw material
d
J
Steel
Steel
Steel
Steel
Steel
Steel
Aperture profile (mm)
d
J
16.5
16.5
16.5
16.5
16.5
16.5
Width [mm]
d
J
35
35
35
35
35
35
Height profile (mm)
d
J
18
18
18
18
18
18
Thickness (mm)
d
J
1.5
1.5
1.5
1.5
1.5
1.5
Profile hole sizes (mm)
d
J
12x20
12x20
12x20
12x20
12x20
12x20
Packaging units
d
J
10
20
20
20
20
10
Packaging type.
d
J
Unpackaged item
Unpackaged item
Unpackaged item
Unpackaged item
Unpackaged item
Unpackaged item
A
t
6 / 6 references
Applications
  • Electric cables
  • Tunnel construction
  • Parallel pipes
  • Fastening parallel pipes
Further specifications

Key features:

  • Ideal for installations with parallel pipes
  • Lateral cutting with rounded edges for avoiding scratches
  • Hole Ø12x20 mm for being fixed with through bolt BAP type

Base materials:

  • This product is not installed directly on a base material
