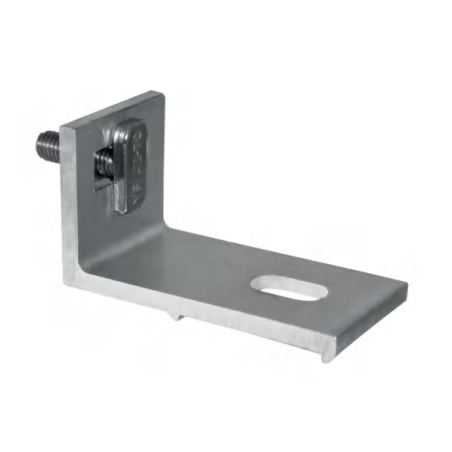

Plate for M10 rod

Coplanar solar fixing bag for M10 rod, 2 units

Product overview

Bag with two units of M10 rod plates. Can be used on roofs where the base material to be fixed is concrete or masonry.

Each bag includes 2 aluminium connection plates, 2 M8x25mm A2 stainless steel hammer head screws , 2 wide washers DIN 9021 A2 stainless steel and 2 M8 DIN 6923 A2 stainless steel nuts and 4 M10 DIN 6923 nuts.

Complete pre-assembled fixing with EPDM washer to facilitate installation and save assembly time. The aluminium connection plate supports the aluminum rail during assembly, it also rotates and changes its position to adapt the installation to each project.

Download documents

List of references

Reference

SLPFIJ

Length [mm]

Width [mm]

Packaging units

Packaging type.

Bag

1 / 1 references

Applications

Solar panel installations
