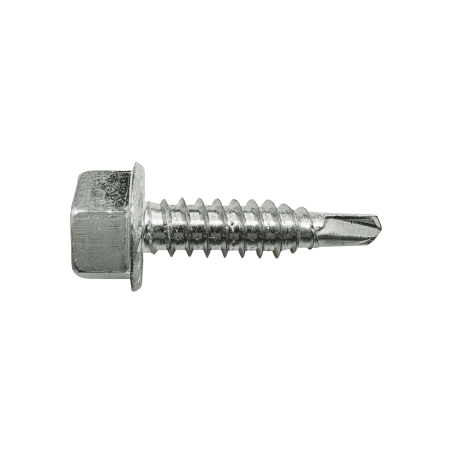

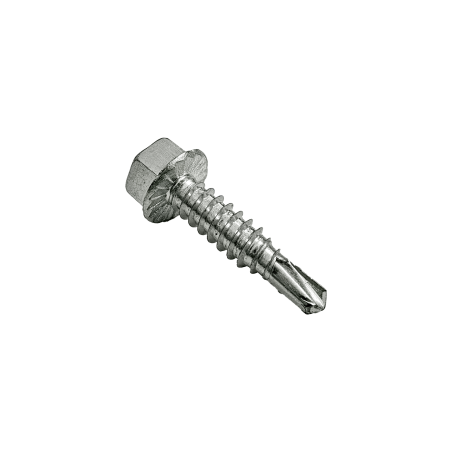

Reduced drill-point screw DIN 7504K

Self-drilling screw DIN 7504KE hexagonal head with zinc-plated formed washer

Product overview

The DIN 7504KE self-drilling screw is designed for fast and secure fixings in steel up to 1.5 mm thick, aluminum, and other light alloys, without the need for pre-drilling thanks to its reduced drill point. Manufactured from carbon steel with a zinc-plated coating, it offers excellent mechanical strength and corrosion protection for standard applications.

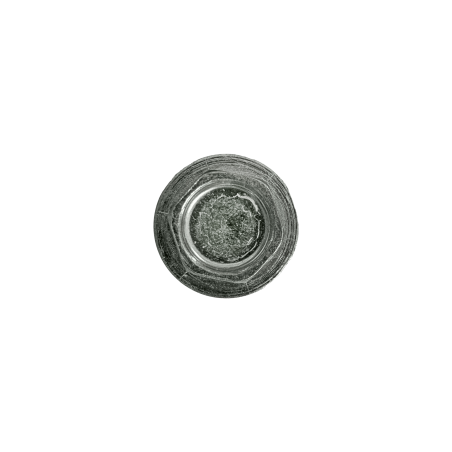

Its hexagonal head allows convenient tightening with a wrench or socket, while the integrated stamped washer improves surface contact and helps distribute the clamping pressure evenly. The serrations under the head help prevent loosening due to vibration, providing a more secure joint in structures subjected to movement or impacts.

Download documents

List of references

Reference

963197504KE

963257504KE

963357504KE

Diameter [mm]

6.3

Length [mm]

Head diameter [mm]

13.2

Head height [mm]

6.45

Recess type

SW10

Packaging units

250

Packaging type.

Box

Applications

Aluminum and metal alloys
Hinges
Garage metal doors
Panel sandwich
Refrigeration chambers

Base materials

Suitable materials

Aluminium sheet

Sandwich panel

Steel sheet
