Self-drilling screw thin thread HM

Raised countersunk head with special thread for thin sheets assembly
Self-drilling screw thin thread HM
Self-drilling screw thin thread HM
Self-drilling screw thin thread HM
Product overview

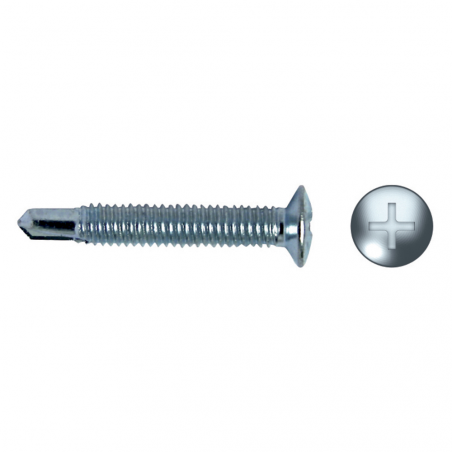

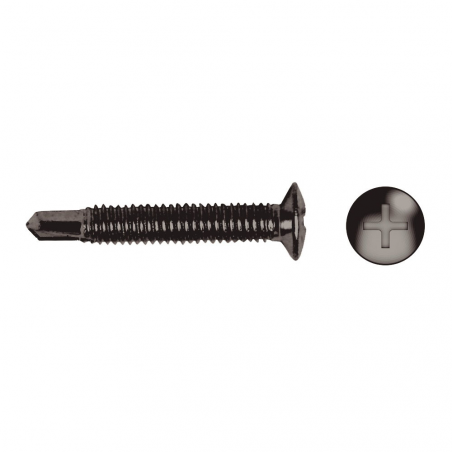

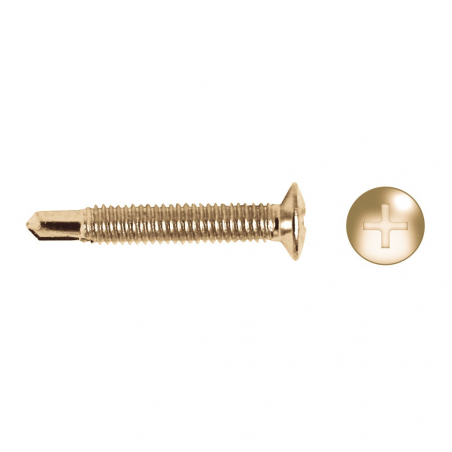

The self-drilling screw HM with raised countersunk head angle 120º and PH recess is designed for the screwing hangers and fittings to metal doors and windows when the thickness of the fitting and the metal sheet is thin. The thin thread avoids stripping and guarantees greater resistance to the vibrations. Made of steel and available in zinc plated, black zinc plated and brass plated coatings.

Download documents
List of references
Filters
Reference
9410HM
9413HM
9416HM
9N416HM
9L416HM
9419HM
9N419HM
9L419HM
9425HM
9N425HM
Close
Screw material
Steel
Close
Diameter between edges [mm]
7.5
Close
Thread
Metric
Close
Head type
Raised countersunk head
Close
Suitable for
Metal sheet assembly
Close
Packaging units
500
Close
Packaging type
Box
Close
Sort by
Column
Reference
Screw material
Diameter between edges [mm]
Thread
Head type
Suitable for
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
9410HM
9413HM
9416HM
9N416HM
9L416HM
9419HM
9N419HM
9L419HM
9425HM
9N425HM
Length
10
13
16
16
16
19
19
19
25
25
Diameter
4
4
4
4
4
4
4
4
4
4
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Diameter between edges [mm]
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
Thread
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Head type
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Raised countersunk head
Suitable for
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Metal sheet assembly
Packaging units
500
500
500
500
500
500
500
500
500
500
Packaging type
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
10 / 10 references are shown
Applications
  • Fittings in aluminium profiles
  • Metal profile fittings
Further specifications

Key features:

  • Raised countersunk head 120º for a better head seat on the handle
  • Selfdrilling screw raised countersunk head angle 120º
  • High resistance to vibration loosening

Base materials:

  • Metal profile
