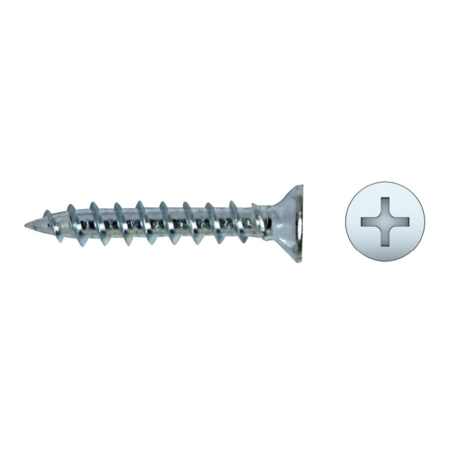

PVC thread screw PVE04

PVC thread screw with special needle point for assembly to PVC profiles
PVC thread screw PVE04
Product overview
PVC thread PVE04 countersunk head Ø7 mm and PH recess incorporates 4 micro serrations under the head for an easy insertion in the PVC and soft braking in the fitting. Made of high quality steel it is available blue zinc plated and yellow zinc plated coating. Also available with white lacquered head.
List of references
Filters
Reference
94116PVE04
94119PVE04
94122PVE04
9B4125PVE04
94125PVE04
9W4125PVE04
94130PVE04
9B4138PVE04
94138PVE04
9W4138PVE04
94145PVE04
94155PVE04
Close
Packaging units
1000
500
250
Close
Sort by
Column
Reference
Screw material
Head diameter [mm]
Head type
Drive system
Suitable for
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
94116PVE04
94119PVE04
94122PVE04
9B4125PVE04
94125PVE04
9W4125PVE04
94130PVE04
9B4138PVE04
94138PVE04
9W4138PVE04
94145PVE04
94155PVE04
Diameter [mm]
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
Length [mm]
16
19
22
25
25
25
30
38
38
38
45
55
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Head diameter [mm]
7
7
7
7
7
7
7
7
7
7
7
7
Head type
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Drive system
PH
PH
PH
PH
PH
PH
PH
PH
PH
PH
PH
PH
Suitable for
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Plastic thread
Packaging units
1000
1000
1000
1000
1000
1000
500
500
500
500
500
250
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
12 / 12 references are shown
Applications
  • PVC profiles
Further specifications

Key features:

  • PVC thread for PVC profiles
  • Countersunk head Ø7 mm

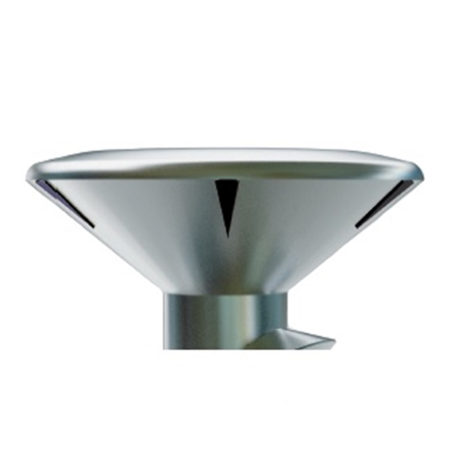

  • Four micro serrations under head for an easy insertion in the PVC and soft braking in the fitting
