Eyebolt screw OES

Eyebolt screw - ideal for scaffold plug GR
Product image of eyebolt screw OES

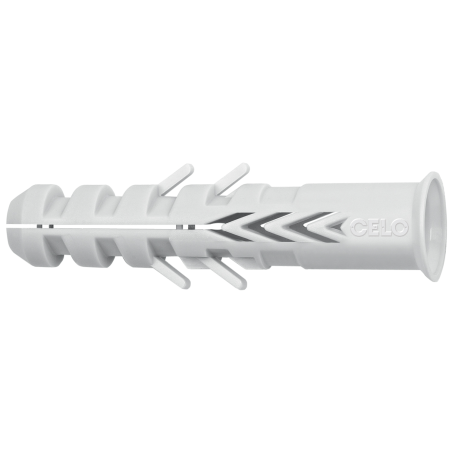

Product image of scaffold plug GR
Product overview

The eyebolt screw OES matches the scaffold plug GR optimally and in this combination guarantees high pull-out values for your scaffolding fastening in concrete, natural stone, solid brick or lime-sand solid stone. It has a wood thread according to DIN 7998 and can therefore not only be screwed into plastic plugs, but also directly into wood. For this purpose, pre-drill a hole with Ø 8 mm in the timber material. Markings on the eyebolt screw enable controlled screwing in and safe assembly.

Show more
Download documents
List of references
Filters
Screw length [mm]
90
120
160
190
230
300
350
Close
Reference
91290OES
912120OES
912160OES
912190OES
912230OES
912300OES
912350OES
Screw diameter [mm]
12
12
12
12
12
12
12
Screw length [mm]
90
120
160
190
230
300
350
Thread
Wood thread
Wood thread
Wood thread
Wood thread
Wood thread
Wood thread
Wood thread
Eyebolt diameter [mm]
23
23
23
23
23
23
23
Suitable for
GR 14
GR 14
GR 14
GR 14
GR 14
GR 14
GR 14
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Coating
Galvanised
Galvanised
Galvanised
Galvanised
Galvanised
Galvanised
Galvanised
Packaging units
20
20
20
20
20
20
20
Packaging type.
Box
Box
Box
Box
Box
Box
Box
A
t
7 / 7 references
Applications
  • Scaffold anchorage
  • Climbing scaffold
  • Clotheslines
  • Hanging flower pots
  • Punching bag
  • Lighting
  • Hammock
Further specifications

Key features:

  • Pairs with the scaffold plug GR for high load values
  • Can be screwed directly into wood
Base materials
Suitable materials
Wood
Wood
Other related products
How to install
Montagebild GR 1
Montagebild GR 2
Montagebild GR 3
Montagebild GR 4
Montagebild GR 5
Montagebild GR 6
