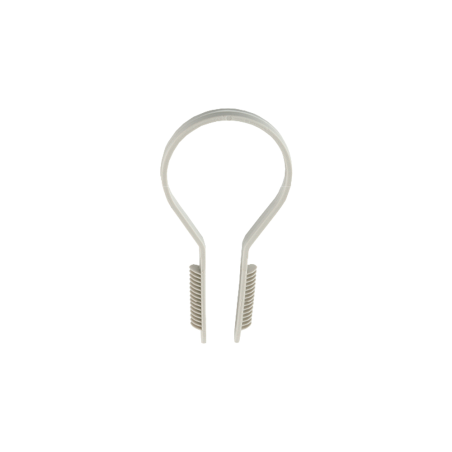

Close plastic cable clip TACCABLE® TCB

Close plastic cable clip

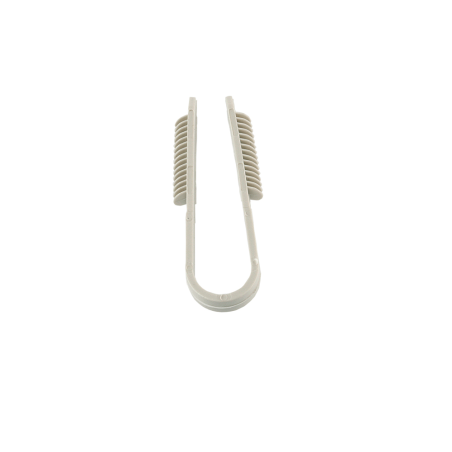

Product image of push-loop Taccable TCB 13

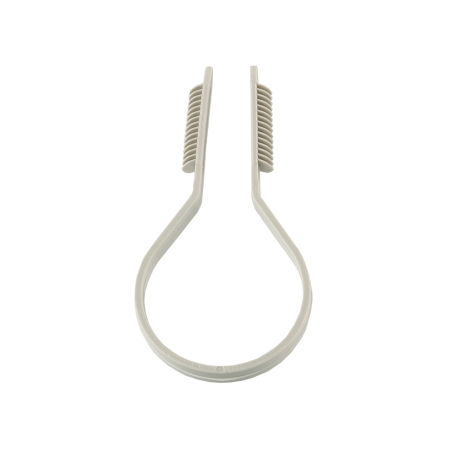

Product image of push-loop Taccable TCB 28

Product overview

The TACCABLE® TCB plug-loop is suitable for fixing cables and conduits from 3 to 28 mm diameter. However, only a small drill diameter of 6 mm is required for installation. TACCABLE withstands a pull-out load of approx. 30kg.

Certified with the RoHS label, which stands for the restriction of the use of certain hazardous substances in electrical and electronic equipment. The purpose of this EU directive is the protection of human health and the environmentally disposal of this equipment. It indicates that the plug does not contain any of these hazardous substances.

Download documents

List of references

Filters

Clamping range [mm]

Height [mm]

Reference

913TCB

928TCB

Length [mm]

10.4

Clamping range [mm]

3-13

13-28

Width [mm]

4.8

Height [mm]

39.4

59.4

Material

Nylon

Colour

Grey

Packaging units

200

100

Packaging type.

Box

2 / 2 references

Applications

Hose
Alarm cable
Signal cable
Telecommunications cable
Cable installation

Further specifications

Key features:

Large clamping range for diameters 3-13 mm (TCB 3-13) and 13-28 mm (TCB 13-28)
Multi-diameter plastic clip with high tensile strength by holding the entire cable in place
Pre-drilling installation with drill bit Ø6
Pull-out load resistance 30 Kg

Base materials:

Concrete
Solid brick
Solid sand-lime brick

How to install

Step 1

Step 2

Step 3
