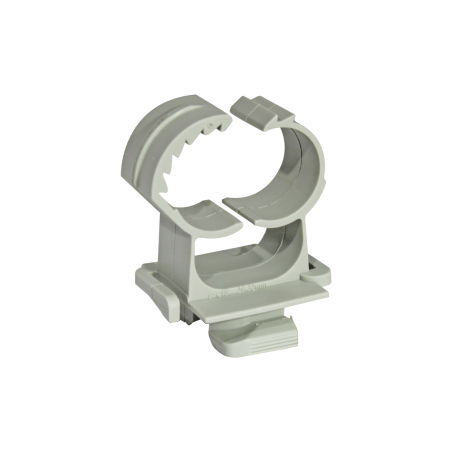

Smart Strut Clamp SSC

To secure tubing or pipe to strut channels without tools

Product overview

Complete your piping installations up to 5 times faster with the Smart Strut Clamps.

The Smart Strut Clamp was designed with safety and productivity in mind, saving you time when installing conduits and pipes on strut channels, including pipe, electrical, cable and mechanical systems.

It is a multidiameter clamp made of nylon and specially made for the strut channel, and you don't need any tools or accessories for the installation. In addition, its nylon properties provide greater performance against expansion due to the temperature contrast of the tubes.

Combine the SSC with our fiberglass channels for an enhanced installation: light, resistant and non-corrosive.

Download documents

List of references

Filters

Reference

Packaging units

Sort by

Column

Sort direction

Reference

918SSC

925SSC

932SSC

942SSC

955SSC

965SSC

Clamping range [mm]

14-18

22-25

25-32

35-42

48-55

59-65

Height [mm]

Width [mm]

Material

Nylon

Colour

Grey

Packaging units

Packaging type.

Box

6 / 6 references are shown

Applications

Plastic pipes
Heating pipes
PVC pipes
Multilayer pipes
Copper pipes

Further specifications

Key features:

Closes automatically when pipe is pushed in; saves time and money
Halogen-free
For all types of plastic pipes (multilayer, polypropylene, polybutylene, ...)
Specially designed to install directly on strut profile
Thermal and electrical insulation
Installation temperature between -5ºC and +45ºC
Use temperature from -10ºC to + 90ºC and occasionally from -25ºC to + 110ºC

Base materials:

This product is not installed directly on a base material
