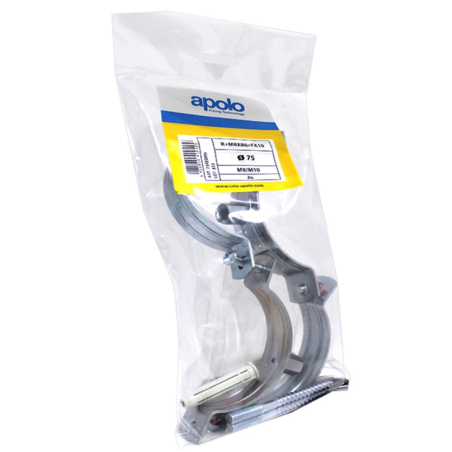

Plastic bag metal clamp M8+M10 R

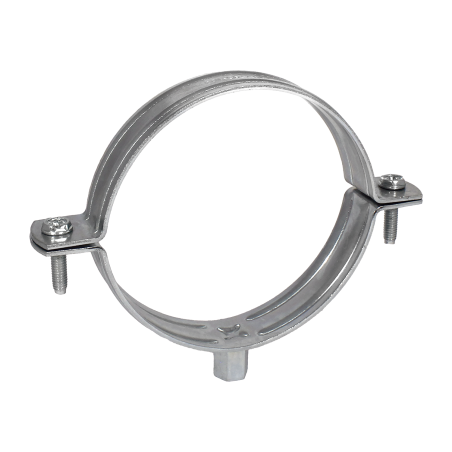

Metal clamp M8+M10
Plastic bag metal clamp M8+M10 R
Plastic bag metal clamp M8+M10 R
Product overview
CELO's metal clamp M8+M10 has a connecting nut with a resistance cross welding. Hexagonal closing screws with PH+slotted recess and PVC washer on the screw to prevent it falls during the opening of installation. Made of high quality steel.
Download documents
List of references
Filters
Head height [mm]
1.8
2.3
Close
Height [mm]
133.5
151.5
163.5
187.5
112.5
39.5
45.5
50.5
57.5
63.5
71.5
78.5
100.5
Close
Clamp length [mm]
148.5
166.5
178.5
202.5
127.5
54.5
60.5
65.5
72.5
78.5
86.5
93.5
115.5
Close
Suitable for
Pipe Ø 100-125
Pipe Ø 140-200
Pipe Ø 75-90
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 35-42
Pipe Ø 48-63
Close
Reference
d
J
110REDRN
125REDRN
140REDRN
160REDRN
90REDRN
18REDRN
22REDRN
28REDRN
35REDRN
40REDRN
50REDRN
60REDRN
75REDRN
Head height [mm]
d
J
1.8
2.3
2.3
2.3
1.8
1.8
1.8
-
1.8
1.8
1.8
-
1.8
Hole distance [mm]
d
J
20
20
20
20
20
20
20
-
20
20
20
-
20
Height [mm]
d
J
133.5
151.5
163.5
187.5
112.5
39.5
45.5
50.5
57.5
63.5
71.5
78.5
100.5
Clamp length [mm]
d
J
148.5
166.5
178.5
202.5
127.5
54.5
60.5
65.5
72.5
78.5
86.5
93.5
115.5
Screw material
d
J
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Suitable for
d
J
Pipe Ø 100-125
Pipe Ø 100-125
Pipe Ø 140-200
Pipe Ø 140-200
Pipe Ø 75-90
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 35-42
Pipe Ø 35-42
Pipe Ø 48-63
Pipe Ø 48-63
Pipe Ø 75-90
Packaging units
d
J
2
2
2
2
2
2
1
2
2
2
2
2
2
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
A
t
13 / 13 references
Applications
  • Steel pipes
  • Drainage pipes
  • Ventilation pipes
  • Heating pipes
  • Plastic pipes
  • PVC pipes
  • Multilayer pipes
Further specifications

Key features:

  • Screw M6x20 hexagonal PH+slotted recess
