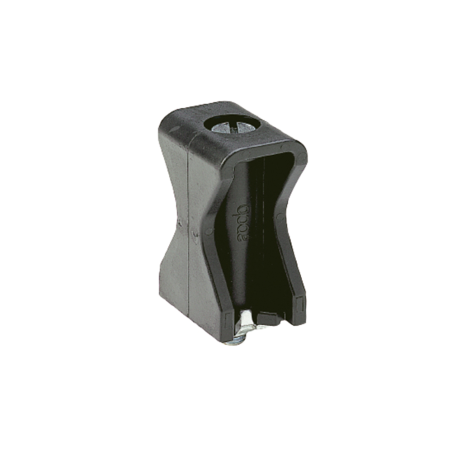

Multitub clamp MTTE

Multitub for parallel installation pipes with profiles 20x10
Multitub clamp MTTE
Multitub clamp MTTE
Product overview
The Multitub system allows fixing tubes in parallel reducing the distance between them (saving space). Secures pipe and insulation without a break, providing an uninterrupted vapor barrier seal which eliminates sweating on metal fittings. It can be used in 2000PG and 2000PB channels. APPLUS approval.
List of references
Filters
Sort by
Column
Reference
Material
Colour
Length [mm]
Height [mm]
Width [mm]
Thread
Diameter [mm]
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
94836MTTE
Material
Nylon
Colour
Black
Length [mm]
16.5
Height [mm]
34
Width [mm]
18
Thread
M4
Diameter [mm]
8-36
Packaging units
100

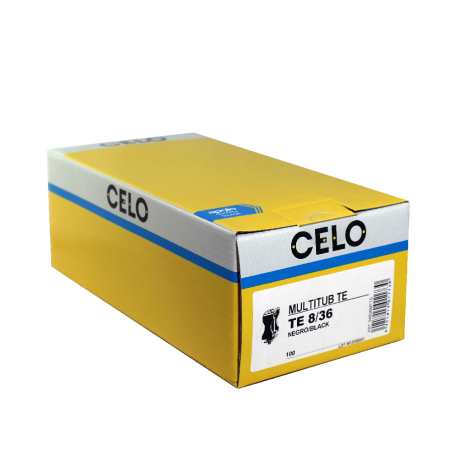

Packaging type.
Box
1 / 1 references are shown
Applications
  • PVC pipes
  • Multilayer pipes
  • Copper pipes
  • Steel pipes
  • Plastic pipes
Further specifications

Key features:

  • Ideal for installations with parallel pipes
  • Assembly with 2000PB and 2000PG channels
  • Connecting thread M8
  • DIN 84 metric screw with slotted recess

Base materials:

  • Concrete
  • Concrete block
  • Solid stone
