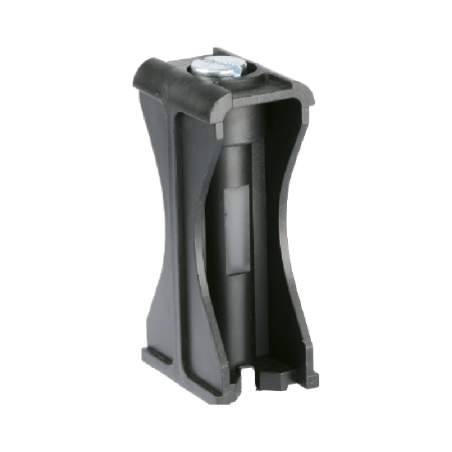

Multitub clamp MT and MTTE

Clamp for parallel installations.
Multitub clamp MT and MTTE
Multitub clamp MT and MTTE
Multitub clamp MT and MTTE
Product overview

The MT Multitub clamp is ideal for fixing tubes in parallel, reducing the distance between the tubes (space-saving). It facilitates the fixing of tubes with a cover by not having to cut it at the fixing points. Mounting with PTTR, 38x40 and T2000P profiles . Applus approved and halogen-free.

Show more
Download documents
List of references
Reference
d
J
94836MTTE
94836MT
941448MT
942472MT
946090MT
Diameter [mm]
d
J
8-36
8-36
14-48
24-72
60-90
Length [mm]
d
J
16.5
23
26
38
70
Thread
d
J
M4
M8
M8
M8
M8
Material
d
J
Nylon
Nylon
Nylon
Nylon
Nylon
Colour
d
J
Black
Black
Black
Black
Black
Height [mm]
d
J
34
36
45
70
100
Width [mm]
d
J
18
26
26
38
34
Packaging units
d
J
100
100
100
100
50
Packaging type.
d
J
Box
Box
Box
Box
Box
5 / 5 references are shown
Applications
  • PVC pipes
  • Multilayer pipes
  • Cooper pipes
  • Steel pipes
  • Plastic pipes
  • Tunnel construction
Further specifications

Key features:

  • Ideal for installations with parallel pipes
  • Assembly with PTTR channels
  • Connecting thread M8
  • DIN 84 metric screw with slotted recess

Base materials:

  • This product is not installed directly on a base material
