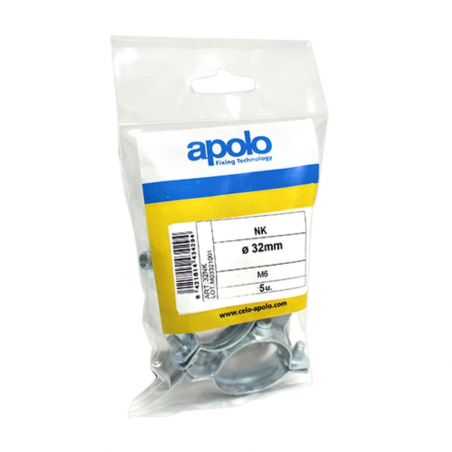

Plastic bag metal clamp M6 NK

Plastic bag metal clamp M6 hold the tube without closing the clamp
Plastic bag metal clamp M6 NK
Plastic bag metal clamp M6 NK
Product overview

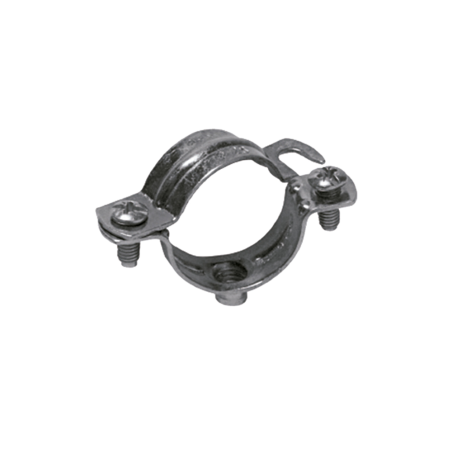

CELO's metal clamp NK M6 with two screws, incorporates an opener clip specially designed for easy pre-installation. Not needs to close the clamp for prefix the pipe, two internal protrusions on the clamp allow clipping the pipe. The pipe doesn't fall. Also the clamp base is 10% bigger than standards for better tube seating.
Download documents
List of references
Filters
Coating
yellow zinc plated
White zinc plated
Close
Suitable for
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 35-42
Close
Clamp length [mm]
38
41
44
48
54
42
46
51
66
Close
Reference
d
J
B12NK
B15NK
B18NK
B22NK
B28NK
16NK
20NK
25NK
40NK
Coating
d
J
yellow zinc plated
yellow zinc plated
yellow zinc plated
yellow zinc plated
yellow zinc plated
White zinc plated
White zinc plated
White zinc plated
White zinc plated
Suitable for
d
J
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 35-42
Thread
d
J
M6
M6
M6
M6
M6
M6
M6
M6
M6
Clamp length [mm]
d
J
38
41
44
48
54
42
46
51
66
Packaging units
d
J
5
5
5
5
10
5
5
5
6
Packaging type.
d
J
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
A
t
9 / 9 references
Applications
  • PVC pipes
  • Cooper pipes
  • Multilayer pipes
  • Steel pipes
  • Parallel pipes
  • Plastic pipes
  • Heating pipes
Further specifications

Key features:

  • No need to close the clamp before fixing the pipe, two internal protrusions on the clamp allow clipping in the pipe
  • Opener clip specially designed for easy pre-installation that allows opening and closing the clamp without need to unscrew it completely
  • Distinctive knurls ensure a good grip and quick tightening of the anchor
  • The clamp base is 10% bigger than standards for better tube seating
