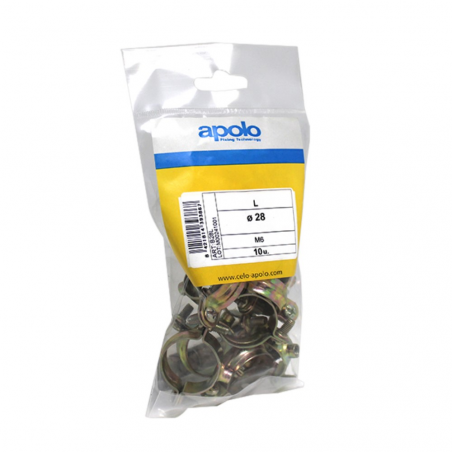

Plastic bag metal clamp M6 L

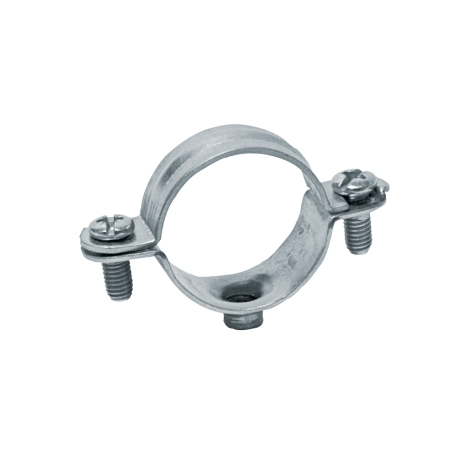

Metal clamp M6 L easy opener clip
Plastic bag metal clamp M6  L
Plastic bag metal clamp M6  L
Technical drawing of metal clamp L
Product overview

The metal clamp L M6 packed in a plastig bag is designed with a M6 connecting thread and two screws. This makes it easy to screw it onto threaded rods or metric screws with M6 thread.

Show more
List of references
Filters
Reference
B28L
B35L
B42L
50L
B55L
B12L
B15L
Close
Diameter [mm]
28
35
42
50
55
12
15
Close
Sheet thickness [mm]
1.2
Close
Clamping range [mm]
28
35
42
50
55
12
18
Close
Length [mm]
51
61.5
68
78
82
37
40
Close
Height [mm]
35.2
42.2
49.2
56
60.7
19.7
22.7
Close
Width [mm]
11/12
12/14
Close
Material
Steel
Close
Packaging units
10
5
6
20
Close
Packaging type
Bag
Close
Sort by
Column
Reference
Diameter [mm]
Sheet thickness [mm]
Clamping range [mm]
Length [mm]
Height [mm]
Width [mm]
Material
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
B28L
B35L
B42L
50L
B55L
B12L
B15L
Diameter [mm]
28
35
42
50
55
12
15
Sheet thickness [mm]
1.2
1.2
1.2
1.2
1.2
1.2
1.2
Clamping range [mm]
28
35
42
50
55
12
18
Length [mm]
51
61.5
68
78
82
37
40
Height [mm]
35.2
42.2
49.2
56
60.7
19.7
22.7
Width [mm]
11/12
11/12
11/12
12/14
12/14
11/12
11/12
Material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Packaging units
10
5
5
6
5
20
20
Packaging type
Bag
Bag
Bag
Bag
Bag
Bag
Bag
7 / 7 references are shown
Applications
  • Steel pipes
  • Fire resistant pipes
  • Heating pipes
  • Copper pipes
  • PVC pipes
  • Multilayer pipes
Further specifications

Key features:

  • Lateral opening, no need to remove the clamp
  • Opener clip specially designed for easy pre-installation that allow opening and closing the clamp without need to unscrew it completly
  • Recommended load safety factor included 50 kg
