Cavity plug universal BT plus with screw

Specialised cavity plug - universal, quick and easy

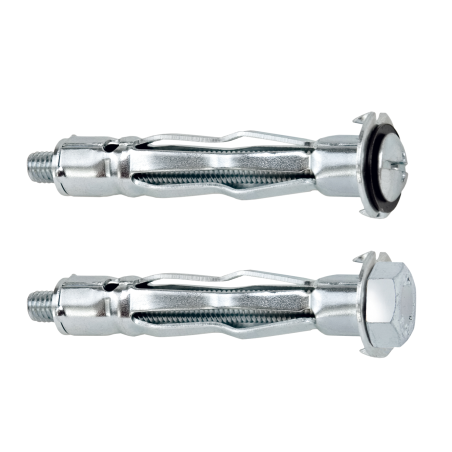

Product image of cavity plug universal BT Plus with metric pan head screw

Technical drawing of cavity plug universal BT Plus with hex-head screw

Product overview

The cavity plug universal BT plus with screw achieves the highest loads in plasterboards. At the same time the BT is universally useable for board thicknesses from 10 to 70 mm.

No additional setting tool needed. The stable metal part toggles in the free space behind the board (min. 51 mm). With pulling back the BT and simultaneously sliding the plastic washer into the drill hole the plug is installed. Break off the remaining plastic legs as shown in the instruction. Now you can fix your application with a metric screw into the internal thread of the metal part behind the board.

BT plus M4-M6 includes a metric pan head screw with PZ2 drive/slot and BT plus M8 features a metric hex-head screw SW13.

Made in Germany.

Download documents

View videos

List of references

Filters

Screw length [mm]

Drill hole diameter [mm]

Thread

Panel thickness [mm]

Packaging type.

Reference

9Y4BTPLO

9Y5BTPLO

9Y6BTPLO

9Y8BTPK

54BTLO4

55BTLO4

56BTLO4

58BTK2

Screw length [mm]

Drill hole diameter [mm]

Thread

Cavity depth [mm]

Panel thickness [mm]

hp+tfix = 10 - 40

hp+tfix = 10 - 52

hp+tfix = 10 - 48

hp+tfix = 10 - 40

hp+tfix = 10 - 52

hp+tfix = 10 - 48

Material

Steel/Plastics

Coating

Galvanised

Packaging units

1600

900

400

Packaging type.

Box

Blister

8 / 8 references

Applications

Radiators
Paintings
Lighting
Shelves
Kitchen cupboard
Sliding door profiles

Further specifications

Key features:

Quick and easy installation

No additional installation tool required

Base materials

Chipboards
Cavity walls
Drywalls
Cavity ceilings

Other related products

How to install

Mounting image BTP 1

Mounting image BTP 2

Mounting image BTP 3

Mounting image BTP 4

Step 5
