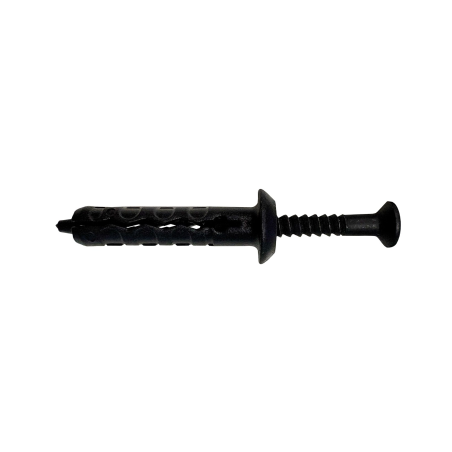

Nail plug NPD

NPD nail plug made of nylon with zinc-plated steel nail
Nail plug NPD
Product overview

The NPD nail plug is a quick-fixing system consisting of a nylon plug and a zinc-plated steel nail, designed for efficient on-site installations. Its design allows the assembly to be inserted into the drilled hole and fixed with a single blow, achieving secure expansion of the plug in the base material without the need for screwing, making it ideal for serial fixings of battens, clips, light profiles and installation elements.

Download documents
List of references
Reference
94630NPD200
94630NPD500
94630NPD1000
Anchorage depth [mm]
35
35
35
Recess type
PZ2
PZ2
PZ2
Packaging units
1
1
1

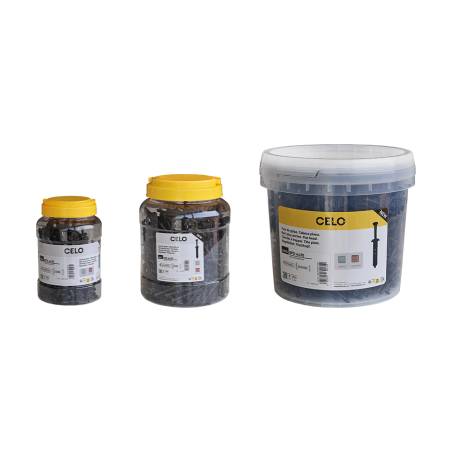

Packaging type.
Round box
Round box
Round box
Applications
  • Wall connections
  • Plaster profiles
  • Base protection profiles
  • Foils
  • Square timber
  • Perforated tapes
  • Metal sheets
Further specifications

Key features:

  • Pre-assembled nail plug for quick through-mounting installation
  • For quick fixing of frames, slats, channels, foils, etc.
  • Accurate tuning between plug and nail screw results in optimal expansion and high pull-out loads
  • Integral barrier prevents premature expansion
  • Thick flange for protection when hammering
  • All nail screws include a Pozi drive recess for screwing if needed
Base materials
Suitable materials
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Natural stone
Natural stone
Aerated concrete
Aerated concrete
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Hollow aerated concrete block
Hollow aerated concrete block
