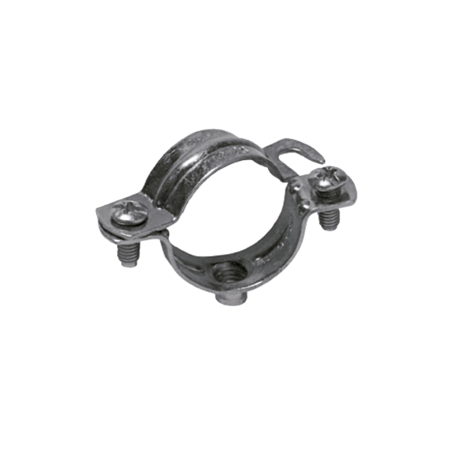

Metal clamp NK M6

Metal clamp M6 hold the tube without closing the clamp
Metal clamp NK M6
Metal clamp NK M6
Product overview
Metal clamp NK M6 with two screws, incorporates an opener clip specially designed for easy pre-installation. Not needs to close the clamp for prefix the pipe, two internal protrusions on the clamp allow clipping the pipe. The pipe doen´ts not fall. Also the clamp base is 10% bigger than standards for better tube seating.
Download documents
List of references
Filters
Reference
9B12NK
9B15NK
916NK
9B18NK
920NK
9B22NK
925NK
9B28NK
932NK
940NK
B12NK
B15NK
16NK
B18NK
20NK
B22NK
25NK
B28NK
32NK
40NK
Close
Coating
yellow zinc plated
White zinc plated
Close
Suitable for
Pipe Ø 10-14
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 35-42
Close
Clamp length [mm]
38
41
42
44
46
48
51
54
58
66
Close
Packaging units
100
50
5
10
6
Close
Packaging type.
Box
Bag
Close
Sort by
Column
Reference
Coating
Suitable for
Thread
Clamp length [mm]
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
9B12NK
9B15NK
916NK
9B18NK
920NK
9B22NK
925NK
9B28NK
932NK
940NK
B12NK
B15NK
16NK
B18NK
20NK
B22NK
25NK
B28NK
32NK
40NK
Coating
yellow zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
White zinc plated
yellow zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
White zinc plated
Suitable for
Pipe Ø 10-14
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 26-32
Pipe Ø 35-42
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 26-32
Pipe Ø 35-42
Thread
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
Clamp length [mm]
38
41
42
44
46
48
51
54
58
66
38
41
42
44
46
48
51
54
58
66
Packaging units
100
100
100
100
100
100
100
100
100
50
5
5
5
5
5
5
5
10
5
6
Packaging type.
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
20 / 20 references are shown
Applications
  • Water pipeline
  • Heating pipes
  • Electrical installations
  • Copper pipes
  • Steel pipes
Further specifications

Key features:

  • The clamp base is 10% bigger than standards for better tube seating
  • Wider clamp 13 mm for better pull out resistance
  • Wider head diameter 9 mm for better closing resistance
  • Recommended load safety factor included 55 kg.
