Plug FX in round box

The ideal plug with high loads in almost all building materials

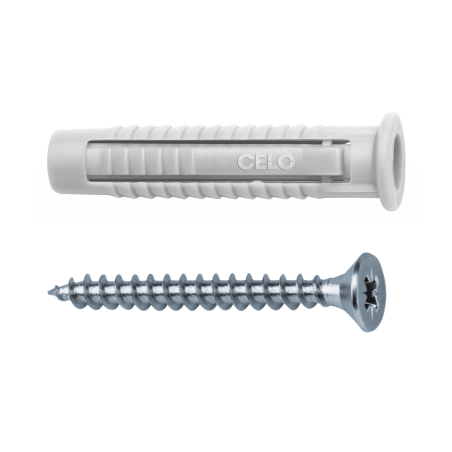

Product image of plug FX 6 in round box
Product overview

The popular nylon plug FX in round box is one of the most versatile nylon plug that achieves very high load values in various building materials due to its 4-side expansion. The FX plug features anti-rotation lugs which prevent rotation in the drill hole, transferring the force optimally into the base material. In addition and for further installation comfort it has a collar that prevents the plug from slipping into the drill hole.

Show more
Download documents
View videos
List of references
Filters
Drill hole diameter [mm]
6
8
10
Close
Drill hole depth [mm]
40
55
70
Close
Anchorage depth [mm]
30
40
50
Close
Plug length [mm]
30
40
50
Close
Screw diameter [mm]
3.5
8
Close
Reference
d
J
96EXPFX
98EXPFX
910EXPFX
Diameter [mm]
d
J
6
8
10
Length [mm]
d
J
30
40
50
Drill hole diameter [mm]
d
J
6
8
10
Drill hole depth [mm]
d
J
40
55
70
Anchorage depth [mm]
d
J
30
40
50
Plug length [mm]
d
J
30
40
50
Screw diameter [mm]
d
J
3.5-5
4.5-6
6-8
Packaging units
d
J
300
125
70
Packaging type.
d
J
Round box
Round box
Round box
3 / 3 references are shown
Applications
  • Lighting
  • Electric switches
  • Wall rack
  • Wall cabinets
  • Letterbox
  • Curtain rail
  • Handrail
  • TV holder
  • Paintings
  • Sanitary fixings
Further specifications

Key features:

  • 4-side expansion for high pull out load
  • Efficient anti-rotation lugs prevents rotation in the drill hole
  • Plug collar prevents slipping into the drill hole
  • Compatible with different types of screws such as wood screws, chipboard screws, self-tapping screws, etc.
  • High quality and ageing resistant nylon
  • Temperature resistant from -40°C to +80°C
  • Stable, transparent round box presents the product

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block
  • Gypsum block
  • Hollow brick
  • Hollow sand-lime block
  • Lightweight hollow concrete block
  • Aerated concrete
  • Plasterboards
  • Fibreboards
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
