Blister insulation plug IPL 60

Special plug for external insulation composite systems
Product image of blister insulation plug IPL 60

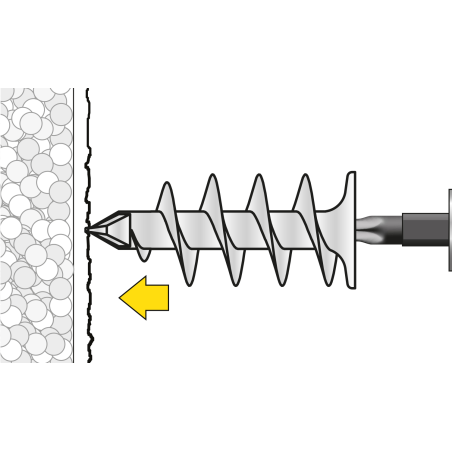

Mounting image IPL60 1

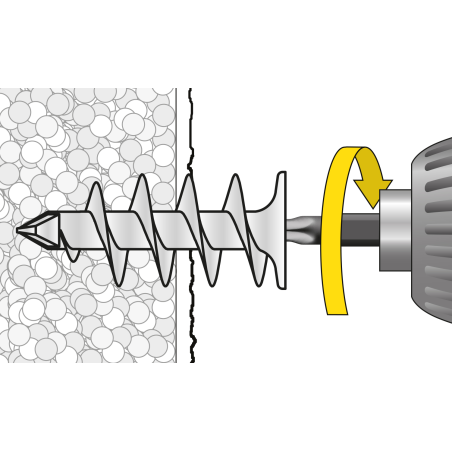

Mounting image IPL60 2

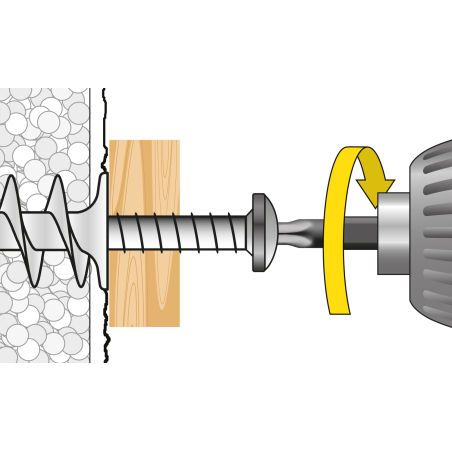

Mounting image IPL60 3

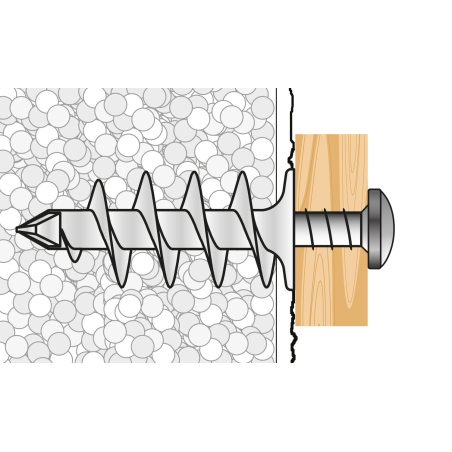

Mounting image IPL60 4
Application image of insulation plug IPL: Lamp on the insulated facade

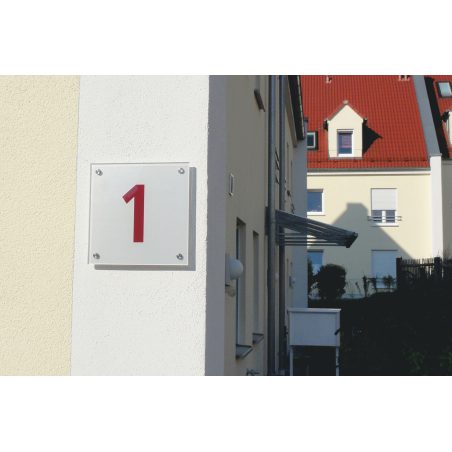

Application image of insulation plug IPL: Number plate on the house wall

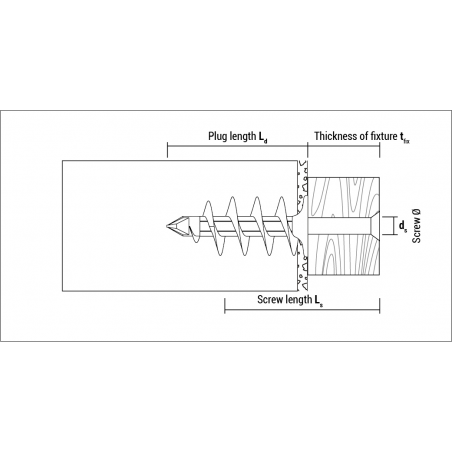

EN - Technical drawing of insulation plug IPL
A Back to combination list
Reference:
560IPL4
Material :
Nylon
Recess type Drive:
TX40
Plug length [mm] Ld:
58
Screw diameter [mm] ds:
4.5-5
Head diameter [mm] dh:
25
Screw insertion depth [mm] Is:
30-50
Screw length [mm] Ls:
≥30
Packaging units:
4
Packaging type.:
Blister
GTIN:
4250438906627
View videos
Reference Description
560IPL4

With the insulation plug IPL 60 in the handy blister direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

The IPL 60 with a head Ø 25 mm is ideal for light fixings such as small lamps, motion detectors and edge trim strips, which are fixed to the anchor with a chipboard screw Ø 4.5- 5.0 mm. Make the installation of the IPL 60 easier with the practical duo bit: no bit change is necessary during installation and the duo bit is available in three versions (TX20/TX40, TX25/TX40 and PZ2/TX40). This saves time and money.

The practical blister contains 4 plugs IPL 60 for your individual projects.

Applications
  • Lighting
  • Motion sensor/detector
  • Letterbox
  • Signs
  • Clothes hook
Further specifications

Key features:

  • Direct fastening into insulation material with no thermal bridge
  • Drills reliably through hard ETICS plaster (≤ 7 mm)
  • Made of age and weather-resistant nylon
  • Drill both screw and plug without changing bits, saving time and money
  • Conforms to the technical requirements for thermal installations for buildings 1027/2007 (RITE)
Base materials
Suitable materials
ETICS (External Thermal Insulation Composite System)
ETICS (External Thermal Insulation Composite System)
Polystyrene
Polystyrene
Hard foam
Hard foam
Wood fibre insulation board MDF
Wood fibre insulation board MDF
Heraklith board
Heraklith board
How to install
Step 1
Step 2
Step 3
Step 4
