Blister insulation plug IPL 95

Special plug for external insulation composite systems
Product image of blister insulation plug IPL 95

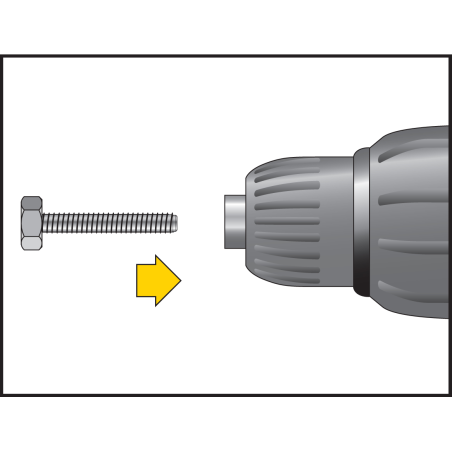

Mounting image IPL95 1

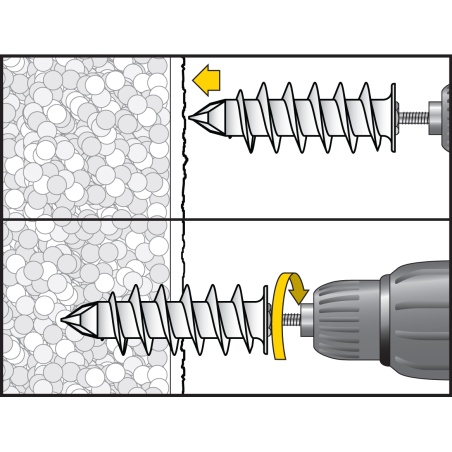

Mounting image IPL95 2

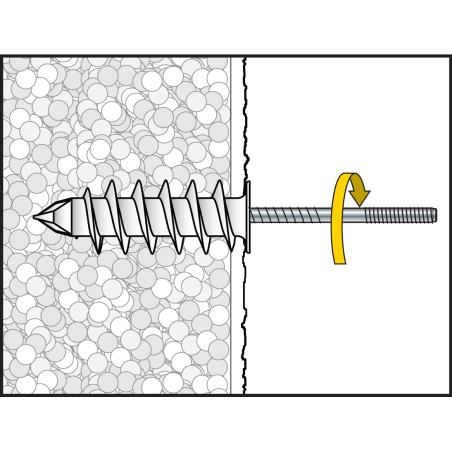

Mounting image IPL95 3

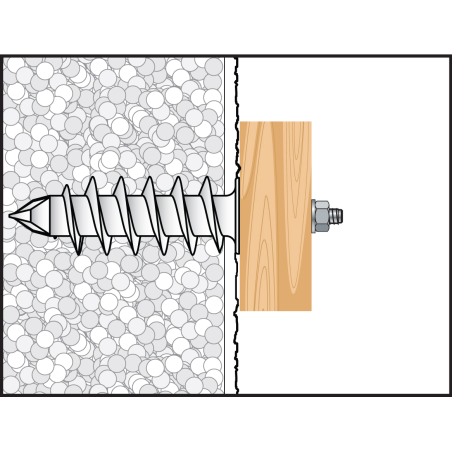

Mounting image IPL95 4
Application image of insulation plug IPL: Lamp on the insulated facade
Application image of insulation plug IPL: Number plate on the house wall
EN - Technical drawing of insulation plug IPL
A Back to combination list
Reference:
595IPL2
Material :
Nylon
Recess type :
SW13
Plug length [mm] Ld:
95
Screw diameter [mm] ds:
8-10
Head diameter [mm] dh:
25
Insertion depth [mm] Is:
40-80
Packaging units:
2
Packaging type.:
Blister
GTIN:
4250438906634
Download documents
View videos
Reference Description
595IPL2

With the insulation plug IPL 95 in the handy blister direct fastening into external insulation material is possible - without thermal bridge. It is therefore a perfect solution for fixing in thermal insulation composite systems, hard-foam boards, polystyrene boards and many other substrates. The IPL consists of ageing- and weather-resistant nylon, is temperature-resistant from -40 to +80 °C and, thanks to its sharp cutting tip, drills reliably through hard ETICS plaster (up to 7 mm) - without pre-drilling.

The larger IPL 95 with head Ø 32 mm is ideal for larger lamps and letterboxes, but is also suitable for fixing rainwater downpipes. A metric screw M8 x 30 is included as setting tool for the SW13 drive of the plug.

The practical blister contains 2 insulation plugs IPL 95 incl. 1 screw M5 x 30 as setting tool for your individual projects.

Applications
  • Lighting
  • Motion detector
  • Letterbox
  • Signs
  • Clothes hook
  • Rainwater downpipes
  • Window blinds
Further specifications

Key features:

  • Special plug for external insulation composite systems
  • Direct fastening into the insulation material - no thermal bridge
  • No predrilling necessary due to sharp cutting tip; also drills reliably through hard ETICS plaster (≤ 7 mm)
  • Made of ageing and weather resistant nylon
  • Temperature resistant from -40°C to +80°C
  • Complies with the Regulation of Thermal Installations of Buildings 1027/2007 (RITE)

Base materials:

  • ETICS (External Thermal Insulation Composite System)
  • Polystyrene board
  • Hard foam board
  • Wood fibre insulation board (pre-drilling: 8mm for IPL60, 13mm for IPL95)
  • Heraklith board
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
