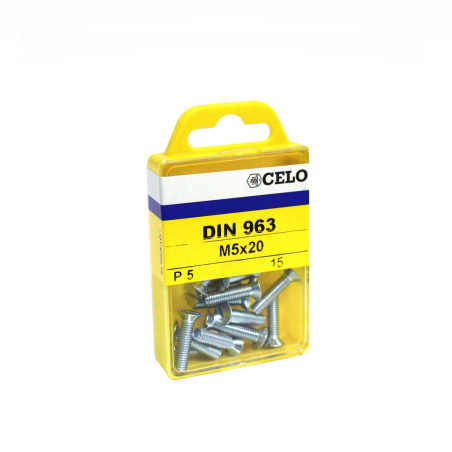

Blister Countersunk metric screw DIN 963

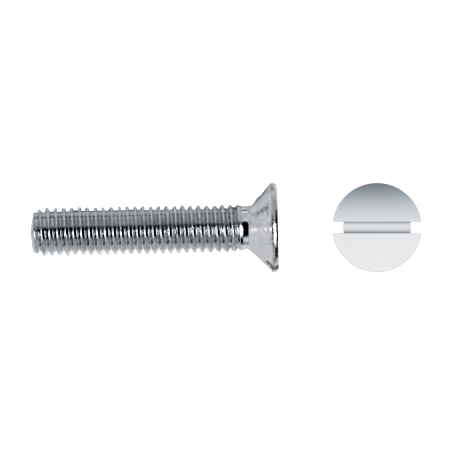

Metric screw countersunk head and deeper milling slotted recess
Blister Countersunk metric screw DIN 963
Blister Countersunk metric screw DIN 963
Product overview
CELO's metric screw DIN 963 countersunk head is made of 4.8 grade steel. The slotted recess has a deeper milling slot to ensure a better screwing and grip.
Download documents
List of references
Filters
Reference
7310963
7410963
7416963
7420963
7425963
7510963
7516963
7520963
7525963
Close
Head diameter [mm]
5.6
9.2
Close
Packaging units
35
20
15
10
Close
Sort by
Column
Reference
Screw material
Head diameter [mm]
Head height [mm]
Thread
Head type
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
7310963
7410963
7416963
7420963
7425963
7510963
7516963
7520963
7525963
Diameter [mm]
3
4
4
4
4
5
5
5
5
Length [mm]
10
10
16
20
25
10
16
20
25
Screw material
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Head diameter [mm]
5.6
-
-
-
-
9.2
9.2
9.2
9.2
Head height [mm]
1.65
-
-
-
-
-
-
-
-
Thread
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Head type
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Countersunk head
Packaging units
35
20
20
20
20
20
15
15
10
Packaging type.
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
9 / 9 references are shown
Applications
  • Electronics
  • Lamps
Further specifications

Key features:

  • Recess with deeper milling slot
