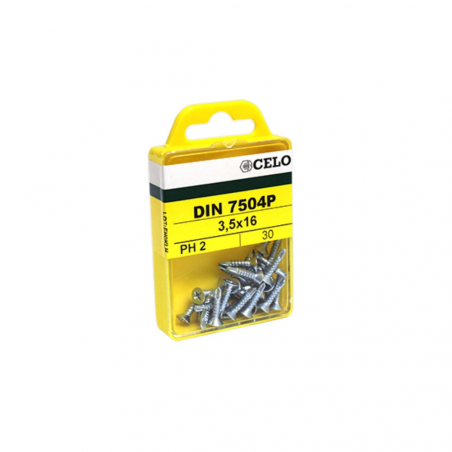

Blister Self-drilling screw DIN 7504P

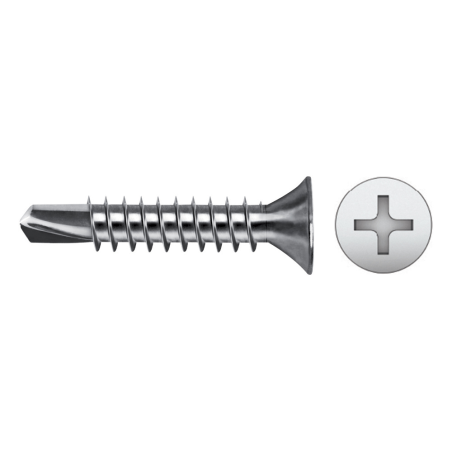

Self-drilling screw countersunk head and PH recess DIN 7504P
Blister Self-drilling screw DIN 7504P
Blister Self-drilling screw DIN 7504P
Product overview
Self-drilling screw DIN 7504P countersunk head and PH recess drills thickness plates depending on the screw diameter, from 2 mm (Ø3,5) up to 6 mm (Ø6,3). Materials in steel coating blue zinc plated. Available in box and blister to meet any consumer need.
Download documents
List of references
Filters
Reference
735137504P
735167504P
Close
Packaging units
35
30
Close
Sort by
Column
Reference
Screw material
Head diameter [mm]
Head height [mm]
Point type
Head type
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
735137504P
735167504P
Diameter [mm]
3.5
3.5
Length [mm]
13
16
Screw material
Steel
Steel
Head diameter [mm]
6.9
6.9
Head height [mm]
2.6
2.6
Point type
Selfdrilling
Selfdrilling
Head type
Countersunk head
Countersunk head
Packaging units
35
30
Packaging type.
Blister
Blister
2 / 2 references are shown
Applications
  • Aluminium fittings
  • Doors, windows
  • Fittings in aluminium profiles
  • Garage metal doors
  • Metal assemblies
  • Metal door
  • Metal furniture
Further specifications

Key features:

  • The bit allows drilling of thickness sheets from 2 mm (Ø3.5) to 6 mm (Ø6.3)
