Blister Frame plug R

The specialist for frames in solid base material

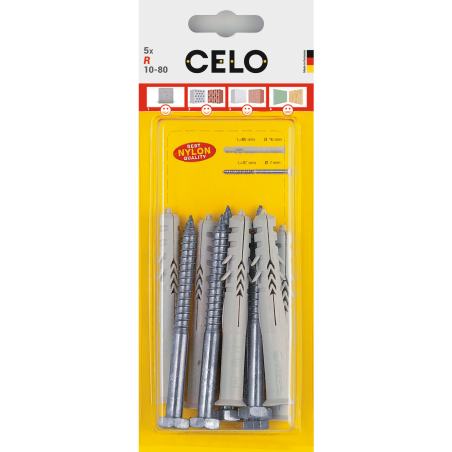

Product image of blister frame plug R with hex-head wood screw
Technical drawing of frame plug R

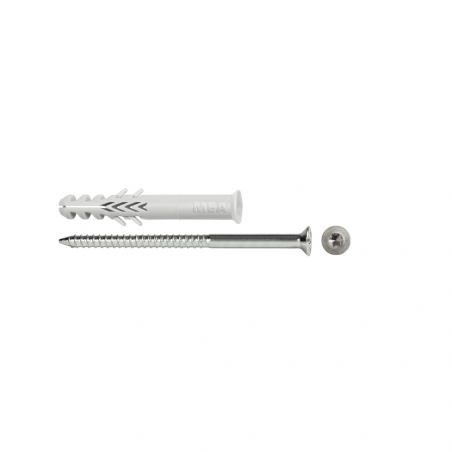

Product image of frame plug R 8 mit Senkkopfschraube

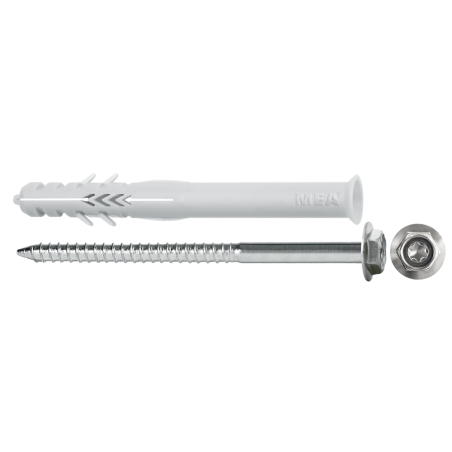

Product image of frame plug R with hex head screw with integral washer
Mounting image R 1
Mounting image R 2
Mounting image R 3
Mounting image R 4
Product overview

The frame plug R in the handy blister is designed for fixings in solid building materials and concrete and features a small setting depth of only 40-50 mm. The distinct anti-rotation wings and 4 holding fins in the middle prevent twisting of the plug in the drill hole during installation.

Show more
List of references
Filters
Reference
510100SK5
510100RST5
510115SK5
510115RST5
510135SK4
510135RST5
510160SK3
510160RST5
51080SK5
51080RST5
5860RSZ10
5880RSZ10
Close
Drill hole diameter [mm]
10
8
Close
Drill hole depth [mm]
60
55
Close
Anchorage depth [mm]
50
40
Close
Plug length [mm]
100
115
135
160
80
60
Close
Thickness of fixture [mm]
50
65
85
110
30
20
40
Close
Recess type
SW13/TX40
TX40
PZ3
Close
Packaging units
5
4
3
10
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Drill hole depth [mm]
Anchorage depth [mm]
Plug length [mm]
Thickness of fixture [mm]
Recess type
Type of plug
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
510100SK5
510100RST5
510115SK5
510115RST5
510135SK4
510135RST5
510160SK3
510160RST5
51080SK5
51080RST5
5860RSZ10
5880RSZ10
Drill hole diameter [mm]
10
10
10
10
10
10
10
10
10
10
8
8
Drill hole depth [mm]
60
60
60
60
60
60
60
60
60
60
55
55
Anchorage depth [mm]
50
50
50
50
50
50
50
50
50
50
40
40
Plug length [mm]
100
100
115
115
135
135
160
160
80
80
60
80
Thickness of fixture [mm]
50
50
65
65
85
85
110
110
30
30
20
40
Recess type
SW13/TX40
TX40
SW13/TX40
TX40
SW13/TX40
TX40
SW13/TX40
TX40
SW13/TX40
TX40
PZ3
PZ3
Type of plug
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Countersunk
Packaging units
5
5
5
5
4
5
3
5
5
5
10
10
Packaging type.
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
Blister
12 / 12 references are shown
Applications
  • Facade substructures
  • Window and door frame fixings
  • Square timber
  • Doors
  • Windows
  • Wall cabinets
  • Metal brackets, rails
Further specifications

Key features:

  • Specialised frameplug for solid building materials
  • Setting depth only 40 mm for R8 and 50 mm for R10 saves time and costs
  • Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
  • The distinctive anti-rotation wings prevent effectively spinning during the installation

Base materials:

  • Concrete
  • Natural stone
  • Solid brick
  • Solid sand-lime brick
  • Lightweight solid concrete block

Do you have any questions about this product?

Request more info
