Blister Spring toggle FK S

Specialised plug for cavity fixings

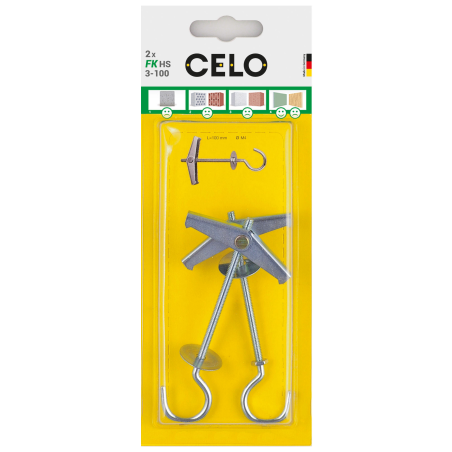

Product image of blister spring toggle FK-S with washer and hexagon nut
Technical drawing of spring toggle FK
Product image of spring toggle FK-S with washer and hexagon nut
Mounting image FK 1
Mounting image FK 2
Mounting image FK 3
Mounting image FK 4
Product overview

The spring toggle FK-S in the handy blister is your solution for fixings in cavity ceilings or walls, and boards like gypsum boards or chipboards. Profit from the easy and fast mounting: Press together the spring toggle and push it through the drill hole. In the free space behind the board the spring toggle folds back automatically and anchors behind the board. Due to the long threaded rod the spring toggle can be installed in many different board thicknesses.

Show more
List of references
Filters
Reference
5390FKS2
5495FKS2
Close
Drill hole diameter [mm]
11
14
Close
Thread
M3
M4
Close
Plug length [mm]
85
90
Close
Cavity depth [mm]
28
35
Close
Type of plug
With washer and hexagon nut
Close
Material
Steel
Close
Coating
Galvanised
Close
Packaging units
2
Close
Packaging type
Blister
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Thread
Plug length [mm]
Cavity depth [mm]
Type of plug
Material
Coating
Packaging units
Packaging type
Close
Sort direction
Ascending
Descending
Close
Reference
5390FKS2
5495FKS2
Drill hole diameter [mm]
11
14
Thread
M3
M4
Plug length [mm]
85
90
Cavity depth [mm]
28
35
Type of plug
With washer and hexagon nut
With washer and hexagon nut
Material
Steel
Steel
Coating
Galvanised
Galvanised
Packaging units
2
2
Packaging type
Blister
Blister
2 / 2 references are shown
Applications
  • Lamps
  • Wall rack
  • Curtain rail
  • Mirror
  • Sliding door profiles
Further specifications

Key features:

  • Suitable for fixings in cavity ceilings or walls, and boards like gypsum boards or chipboards
  • Flexible usage due to long threaded rod
  • Quick and easy handling as the plug enfolds automatically

Base materials:

  • Cavity ceilings
  • Cavity walls
  • Fibreboards
  • Chipboards
