Single label eyebolt screw OES

Eyebolt screw - ideal for scaffold plug GR

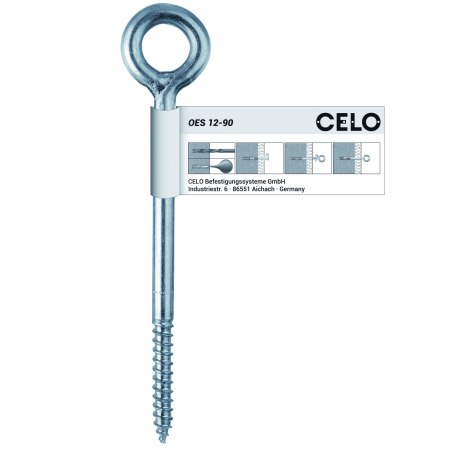

Product image of single label eyebolt screw OES

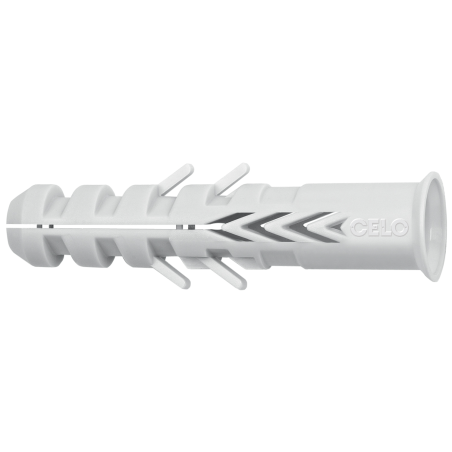

Product image of scaffold plug GR
Product overview

The single label eyebolt screw OES matches the scaffold plug GR optimally and in this combination guarantees high pull-out values for your scaffolding fastening in concrete, natural stone, solid brick or lime-sand solid stone. It has a wood thread according to DIN 7998 and can therefore not only be screwed into plastic plugs, but also directly into wood. For this purpose, pre-drill a hole with Ø 8 mm in the timber material. Markings on the eyebolt screw enable controlled screwing in and safe assembly.

Show more
List of references
Filters
Reference
11290OES
112120OES
112160OES
112190OES
112230OES
Close
Screw length [mm]
90
120
160
190
230
Close
Sort by
Column
Reference
Screw diameter [mm]
Screw length [mm]
Thread
Eyebold diameter [mm]
Suitable for
Screw material
Coating
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
11290OES
112120OES
112160OES
112190OES
112230OES
Screw diameter [mm]
12
12
12
12
12
Screw length [mm]
90
120
160
190
230
Thread
Wood thread
Wood thread
Wood thread
Wood thread
Wood thread
Eyebold diameter [mm]
23
23
23
23
23
Suitable for
GR 14
GR 14
GR 14
GR 14
GR 14
Screw material
Steel
Steel
Steel
Steel
Steel
Coating
Galvanised
Galvanised
Galvanised
Galvanised
Galvanised
Packaging units
1
1
1
1
1
Packaging type.
Unpackaged item
Unpackaged item
Unpackaged item
Unpackaged item
Unpackaged item
5 / 5 references are shown
Applications
  • Scaffold anchorage
  • Climbing scaffold
  • Hanging flower pots
  • Punching bag
  • Lighting
  • Hammock
  • Chain and rope fastenings
Further specifications

Key features:

  • The eybolt screw OES matches optimally with the scaffold plug GR for high load values
  • Markings on the eyebolt screw facilitate controlled screwing-in
  • The eyebolt can be screwed directly into wood
  • The high-quality welded joint prevents the eye from bending open
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
