Single label bolt anchor BAZ stainless steel A4

Maximum security for each project

Product image of single label quick-fix anchor BAZ stainless steel A4

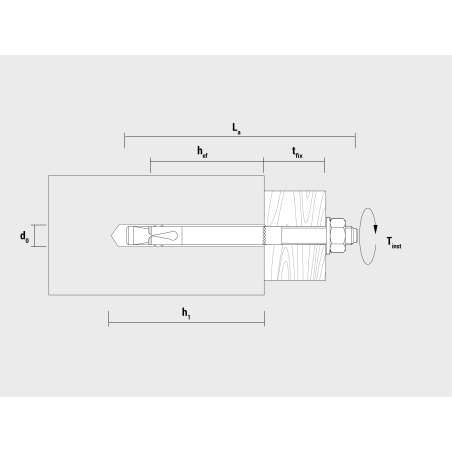

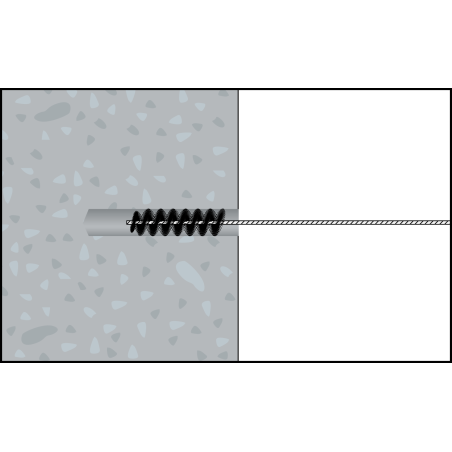

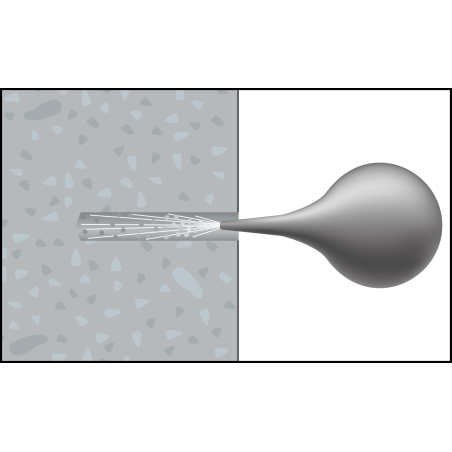

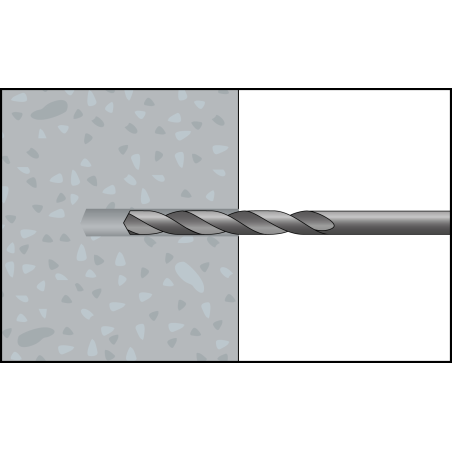

Technical drawing of quick-fix anchor BAZ

Product overview

The zinc plated single label bolt anchor BAZ is excellently suited for a variety of fixings in cracked and non-cracked concrete, as confirmed by the ETA rating option 1 for cracked concrete - but can also be used for dense natural stone (up to M8). Due to its long thread, the BAZ bolt anchor ensures greater flexibility in application, especially for distance installations.

Due to its elaborate expansion clip geometry, it quickly and safely anchors itself to the base material and achieves high load values even with small edge and axial distances. The perfect adjustment between the cone and the expansion sleeve ensures reliable expansion behaviour and high load values.

Particularly in the case of push-through installation through wood, the rounding of the expansion cone simplifies the setting of the fireproof anchor (according to fire resistance class R120).

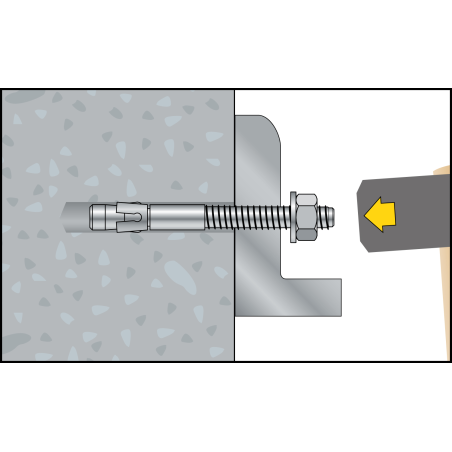

The BAZ has a special impact protection on the head to protect the thread when hammering in. Thus the pre-assembled nut can always be unscrewed without any problems. Thanks to cold forming of the bolt and the thread, the BAZ reaches high hardness and precision and is approved as an anchor subjected to seismic loading (category C1). According to the VdS guideline, it may also be used for fixing pipes for fire extinguishing systems to concrete ceilings.

Suitable for indoor and outdoor application.

Choose the desired quantity for your individual project with the single lable BAZ made from stainless steel A4!

Download documents

View videos

List of references

Filters

Drill hole diameter [mm]

Drill hole depth [mm]

Eff. Anchorage depth [mm]

Plug length [mm]

Thickness of fixture [mm]

Thread

Reference

1X872BAZ

1X892BAZ

1X1092BAZ

1X10112BAZ

1X12118BAZ

Drill hole diameter [mm]

Drill hole depth [mm]

Eff. Anchorage depth [mm]

Plug length [mm]

112

118

Thickness of fixture [mm]

Thread

M10

M12

Material

Stainless steel A4

Packaging units

Packaging type.

Box

5 / 5 references

Applications

Steel supports
Attaching steel structures
Railings (Outdoor: use stainless steel A4 or HCR)
Facade substructures
Machines
Doors
Pipelines
Cable trays

Further specifications

Key features:

ETA-approved for quick installation in non-cracked concrete and partly in dense natural stone (up to M8)
Long thread for more flexibility
Distinctive knurls ensure a good grip and quick tightening of the anchor
The bolt and thread is cold-forged, giving the BAZ high precision and making it very strong

Punched bolt head prevents thread destruction while hammering.
A rounding of the expansion cone eases the anchor`s insertion into the hole especially when installed through wood
The perfect adjustment between cone and clip ensures reliable expansion and consistent high pull-out loads
Available in many different materials: galvanized, hot-dip galvanized, stainless steel A4 and stainless steel HCR
Stainless steel A4

Base materials

Suitable materials

Concrete

Dense natural stone
