Single label multifunction frame plug MFR FB SSKS

Ideal for metal construction

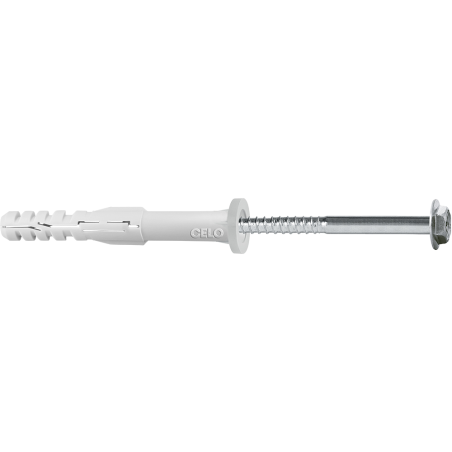

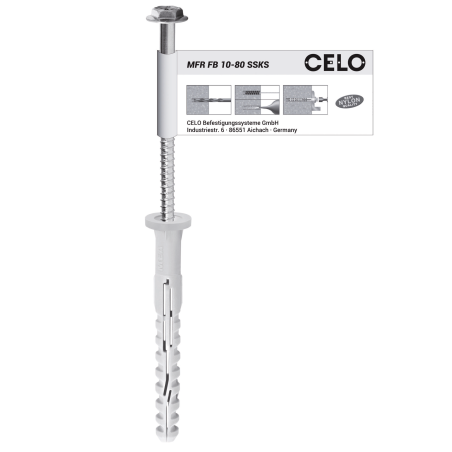

Product image of multifunction frame plug MFR flat rim plug with hex head screw with integral washer, single label, zinc plated

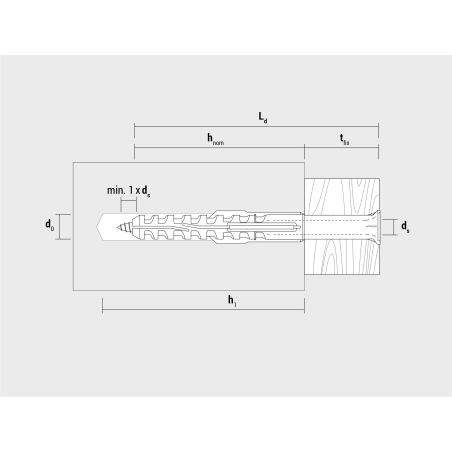

Technical drawing of multifunctional frame plug MFR

Single label multifunction frame plug MFR FB SSKS

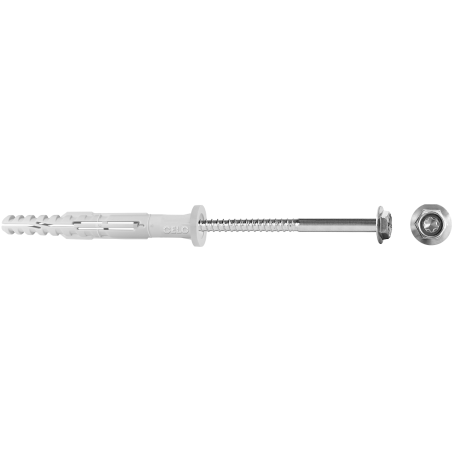

Product image of multifunction frame plug MFR 8 flat rim plug with hex head screw with integral washer, zinc plated

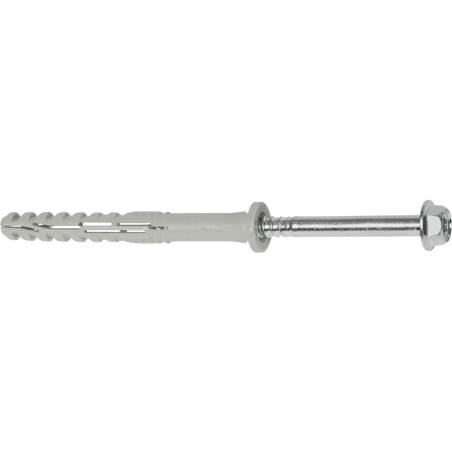

Product image of multifunction frame plug MFR 14 flat rim plug with hex head screw with integral washer, zinc plated

Product overview

The multifunction frame plug MFR FB SSKS with flat rim head and hex-head screw with integral washer is your ideal solution for universal mounting of facade substructures as well as wood and metal parts. As confirmed by the ETA assessment for concrete and masonry the MFR is approved for all common base materials like concrete, solid brick, perforated brick, aerated concrete and even for precast prestressed hollow core slabs.

The long expansion area and early expansion achieved by lateral bars ensure secure hold while the flat rim plug prevents contact corrosion. As all sizes up to 14-140 are pre-assembled, this reduces costs in warehousing and saves time at the construction site.

Choose from our wide range of hex-head screws with integral washer and TX-drive in zinc coated or A4 stainless steel. With its two setting depths of 50 mm and 70 mm the MFR is suitable for very flexible installations and ETA-approved for installation in precast prestressed hollow core slabs.

The multifunction frame plug MFR consists of high-quality, ageing-, weather- and UV-resistant nylon (from -40°C until +80°C) and convinces through quality "Made in Germany”.

With the MFR FB SSKS single label you can select the right anchor quantity required for your individual projects.

Download documents

View videos

List of references

Filters

Plug length [mm]

Thickness of fixture [mm]

Reference

11080MFRFB

110100MFRFB

Diameter [mm]

Length [mm]

100

Drill hole diameter [mm]

Drill hole depth [mm]

60/80

Anchorage depth [mm]

50/70

Plug length [mm]

100

Thickness of fixture [mm]

10/30

30/50

Packaging units

Packaging type.

Unpackaged item

2 / 2 references are shown

Applications

Facade substructures made of wood and metal
Window and door frame fixings
Fire protection doors
Metal brackets, rails
Consoles
Wall cabinets
Panels
Square timber
Handrail
Paintings

Further specifications

Key features:

The ETA approval guarantees a secure fixing in many building materials
Suitable for facade installations, fixing of doors and windows, wall cabinets and frames in general
The long expansion area and early expansion achieved by lateral bars ensure reliable and secure hold
Approved by company Hörmann for fire protection doors
Screw and plug are pre-assembled
High quality and ageing resistant nylon
Temperature resistant from -40°C to +80°C

Base materials:

Concrete
Natural stone
Solid brick
Solid sand-lime brick
Lightweight solid concrete block
Aerated concrete
Hollow brick
Hollow sand-lime block
Lightweight hollow concrete block
Precast prestressed hollow core slabs
