Blister Insulation screw IPS

Special screw for direct fastening into insulation materials (ETICS)

Product image of blister insulation screw IPS

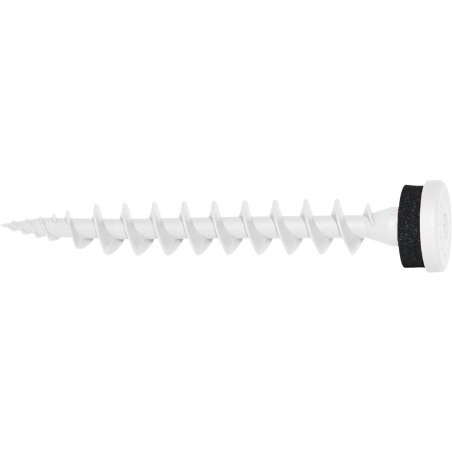

Product image of insulation screw IPS 80 signal white

Product overview

The insulation screw IPS in the handy blister is perfectly suitable for direct fastening into insulation materials without thermal bridges of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, ... making the IPS the reference fixing for thermal insulation in light duty applicartions.

The IPS is the right solution when light loads must be secured directly into the insulation.

The innovative IPS is a screw made out of glass fiber-reinforced nylon, that means: aging, weather and UV-resistant. Its stylish flat head with EPDM sealing ensures optimal sealing and surface blending.

Built with the TX-Drive (TX25) to get a fast and easy installation.

The head hole allows light duty fixings in combination with a screw 3,5 mm. A distinctive thread ensures good hold in insulation boards, furthermore the IPS fits through a 8mm hole. No pre-drilling in plaster (up to 7 mm) due to sharp drilling rip, therefore you get an extremely fast mounting.

Conceived with a length of 80mm the IPS is suitable for nearly all insulated facades (from 80mm) out of polystyrene boards.

4 white IPS 80 incl. matching screws made of stainless steel A2 with PH2 drive (4 screws 3,5x13 mm and 3,5x16 mm each) available in the handy blister!

Made in Germany.

Download documents

View videos

List of references

Reference

5180IPSPH4

Diameter [mm]

Length [mm]

Colour

RAL 9003 - White

Plug length [mm]

Screw diameter [mm]

3.5

Head diameter [mm]

Clearance hole [mm]

8-10

Packaging units

Packaging type.

Blister

1 / 1 references are shown

Applications

Wall connection profiles
Base protection profiles
Cornice covers
Motion detector
Lighting
Signs

Further specifications

Key features:

Special screw for direct fastening into external thermal insulation composite systems (ETICS) - extremely fast and without thermal bridges!
For fastening of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, lamps, signs, etc. into the insulation material
No pre-drilling in plaster (≤ 7 mm) due to sharp drilling tip
Made with fiberglass reinforced nylon, incorporates EPDM rubber weather, aging and UV resistant
Suitable for clearance holes ≥ Ø 8 mm (common for wall profiles)
Suitable for light duty fixings in combination with a screw Ø 3,5 mm
Stylish flat head in different colors
