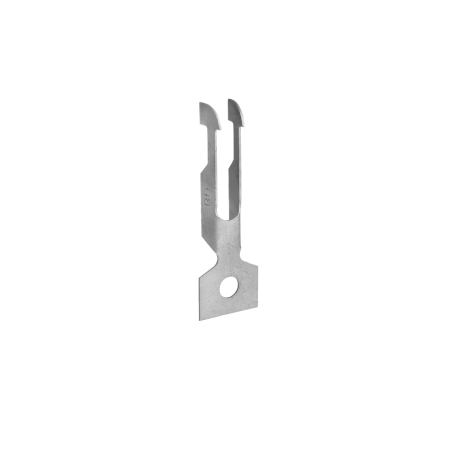

Trapezoidal deck wire hanger TPW

For hanging wires, S-hooks or chains for Lighting and signage.

Product overview

The TPW hanger is a fire approved trapezoidal deck hanger for hanging wires, S-hooks or chains on decks of thicknesses between 0.8 and 3mm. Save time with the fast and stable fixing to trapeze metal sheet: just drill and install.

Its 6.3 mm hole enables the insertion of the common wires, chains, S hooks, cable ties, bolts ... for installations on trapeze ceilings.

Benefit from up to 75kg of safe working load.

Available in zinc aluminum grey flakes coating for high resistance to corrosion (480Hr. SST, DIN 50021)

Download documents

List of references

Reference

9TPW

Length [mm]

55.5-tm

Drill hole diameter [mm]

7-8

Sheet thickness [mm]

0.8-3

Hole diameter

6.3

Packaging units

Packaging type.

Box

Applications

Suspended ceilings
Suspended installations

Further specifications

Key features:

No welding required

Base materials

Suitable materials

Sandwich panel

Other related products

How to install

Step 1
