Blister cavity plug universal BT plus with screw

Specialised cavity plug - universal, quick and easy

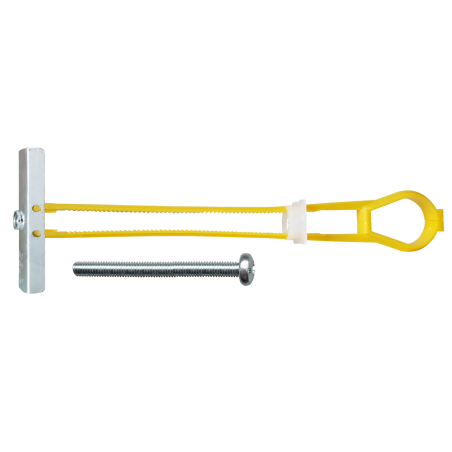

Product image of blister cavity fixing universal BT plus
Technical drawing of cavity plug universal BT
Product image of cavity plug universal BT Plus with metric pan head screw
Product image of cavity plug universal BT Plus with hex-head wood screw
Mounting image BTP 1
Mounting image BTP 2
Mounting image BTP 3
Mounting image BTP 4
Mounting image BTP 4 with hex-head screw
Technical drawing of cavity plug universal BT Plus with hex-head screw
Product overview

The cavity plug universal BT plus with screw achieves the highest loads in plasterboards. At the same time the BT is universally useable for board thicknesses from 10 to 70 mm. No additional setting tool needed.

Show more
List of references
Filters
Reference
54BTLO4
55BTLO4
56BTLO4
58BTK2
Close
Drill hole diameter [mm]
13
19
Close
Thread
M4
M5
M6
M8
Close
Recess type
Slotted+PZ2
SW13
Close
Head type
Pan head
10
Close
Packaging units
4
2
Close
Sort by
Column
Reference
Drill hole diameter [mm]
Thread
Recess type
Head type
Material
Packaging units
Packaging type.
Close
Sort direction
Ascending
Descending
Close
Reference
54BTLO4
55BTLO4
56BTLO4
58BTK2
Screw diameter [mm]
4
5
6
8
Screw length [mm]
1
1
1
1
Drill hole diameter [mm]
13
13
13
19
Thread
M4
M5
M6
M8
Recess type
Slotted+PZ2
Slotted+PZ2
Slotted+PZ2
SW13
Head type
Pan head
Pan head
Pan head
10
Material
Steel/Plastics
Steel/Plastics
Steel/Plastics
Steel/Plastics
Packaging units
4
4
4
2
Packaging type.
Blister
Blister
Blister
Blister
4 / 4 references are shown
Applications
  • Paintings
  • Lamps
  • Shelves
  • Kitchen cupboard
  • Sliding door profiles
Further specifications

Key features:

  • Universal: useable for board thicknesses from 10 to 70 mm
  • Very good load values
  • Quick and easy installation
  • No special installation tool required

Base materials:

  • Fibreboards
  • Chipboards
  • Hollow brick
  • Cavity ceilings
