Blister Cavity fixing HR with chipboard screw

Nylon plug for light loads in cavity fixings
Product image of blister cavity plug HR with screw

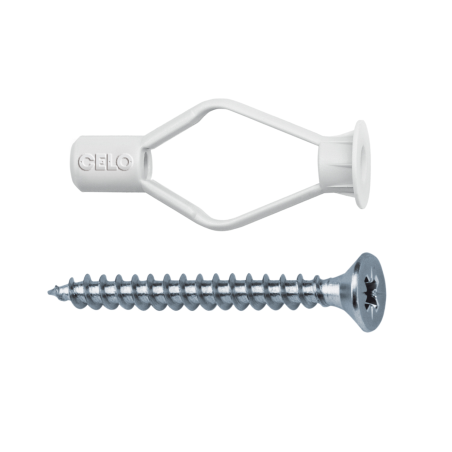

Product image of cavity fixing HR with screw
Product overview

The cavity fixing HR blister is suitable for fixings on boards like gypsum boards or chipboards. Low-cost fixing system for light duty applications. Installation with wood screws or chipboard screws due to the threaded part at the point of the plug. By screwing in the screw the two arms expand behind the board and build a form closure.

Show more
List of references
Filters
Drill hole diameter [mm]
6
8
Close
Panel thickness [mm]
3
16
Close
Plug length [mm]
30
40
Close
Screw diameter [mm]
3.5
4
Close
Screw length [mm]
50
60
Close
Reference
d
J
56HRSZ20
58HRSZ20
Drill hole diameter [mm]
d
J
6
8
Panel thickness [mm]
d
J
3-14
10-16
Plug length [mm]
d
J
30
40
Thickness of fixture [mm]
d
J
12
12
Screw diameter [mm]
d
J
3.5
4
Screw length [mm]
d
J
50
60
Material
d
J
Nylon
Nylon
Packaging units
d
J
20
20
Packaging type.
d
J
Blister
Blister
2 / 2 references are shown
Applications
  • Paintings
  • Lighting
  • Light switches
  • Towel rail
Further specifications

Key features:

  • Suitable for fixings on boards like gypsum boards or chipboards
  • Low-cost fixing system for light duty applications
  • Installation with wood screws or chipboard screws

Base materials:

  • Fibreboards
  • Chipboards
How to install
Step 1
Step 2
Step 3
Step 4
