Install awnings on ETICS. Securely.

With ResiTHERM®

As an awning installer, you know the importance of a secure and reliable installation. But with insulated façades becoming more common, traditional mounting solutions just aren't good enough. That's where ResiTHERM® 16 & 12 comes in - this game changing solution is specifically designed to ensure a fast installation process that guarantees safety.

But don't wait - with demand of the ResiTHERM® 16 & 12 soaring, now is the time to get ahead of your competition and ensure peace of mind. Experience the difference for yourself and request more information today.

Request more info and get:

Free product samples

Product demonstrations

Expert technical advice

German Design Award 2023 for excellent product design

The ResiTHERM® 16 is the result of thoughtful design that combines efficiency, sustainability and ease of installation, making it a unique solution for users and installers who value sustainability and time saving. It is now the most popular product for awning installers due to its versatility

Find out more >

ResiTHERM® 16 & 12 distance mounting highlights

The only distance mounting system with ETA approval in concrete and hollow brick

Impervious to driving rain up to
wind force 11 Beaufort according to DIN EN 1027

Fast installation - Reduced installtion steps compared to competitors

How to install awnings on the
insulated façade with
ResiTHERM® 16 and 12

Drilling a hole into the insulated façade ready for an awning application

1. Drill and clean out the hole

Filling the hole with chemical anchor ready for the ResiTHERM® distance mounting system

2. Insert chemical anchor

Installation of the ResiTHERM® into the insulated façade

3. Insert the ResiTHERM® and fix in place

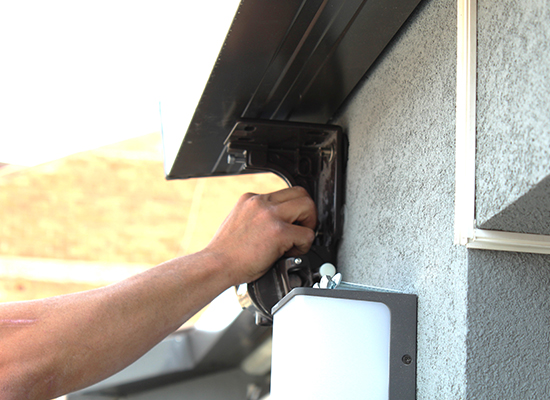

Adding the application bracket to the ResiTHERM® for an awning installation

4. Secure awning attachment to ResiTHERM®

A heavy duty awning application that has been installed with the distance mounting system ResiTHERM

5. Fix awning into place and complete!

ResiTHERM® 16 product info

Plug length

ResiTHERM 16 - 385mm

Suited insulation thicknesses

60-300 mm

Thread

M16

Connecting thread

M12

- Awnings
- Canopies
- Sun protection sails
- Air-conditioners
- Satellite dishes
- Guard rails
- Building constructions

- Hollow brick + ETICS
- Aerated concrete AAC2 + ETICS
- Aerated concrete AAC4 + ETICS
- Concrete + ETICS
- Solid sand lime brick
- Hollow sand lime brick

ResiTHERM® 12 product info

Plug length

295mm

Suited insulation thicknesses

60-220 mm

Thread

M12

Connecting thread

M12

- Awnings
- Canopies
- Sun protection sails
- Air-conditioners
- Satellite dishes
- Guard rails
- Building constructions

- Hollow brick + ETICS
- Aerated concrete AAC2 + ETICS
- Aerated concrete AAC4 + ETICS
- Concrete + ETICS
- Solid sand lime brick
- Hollow sand lime brick

What are they saying about distance mounting system ResiTHERM®?

Above the door canopy which has been installed with the ResiTHERM®

"I am a master metalworker since 2018 and had the opportunity to found my own company. My last order was to cover two canopies made of a steel construction with a real glass. During the construction I had to determine that the massive concrete wall was provided with 20cm insulation + plaster. By chance I found your company and the distance system on the Internet. The product video of the adhesive plugs convinced me. I would like to take this opportunity to thank you very much for the development of this unique fastening. ... By centering the plastic core, I was able to glue in all 16 plugs at once. That was an enormous time saving"

- ASL Metallbau, Germany

A complete range of insulation fixings and accessories

CELO offers a wide range of complementary fixing solutions for the insulated façade. Whether you are looking for chemical anchors to install with the ResiTHERM® 16 and 12 or looking for smaller solutions to help you install wind sensors for the awnings.
With over 60 years experience in technical fixings CELO has it all.

Use case for the insulation plug ipl mounting a number on a house wall

Fixing solutions for all kind of loads in ETICS - light and heavy

Such as:
• Wind sensors
• Lamps
• Motion detectors

use case for the short screws ips-h and ipsd-h

Chemical anchors to support ResiTHERM® 16 & 12

Including:
• Injection mortar ResiFIX Vinylester VYSF
• Injection mortar ResiFIX Vinylester VY ECO SF
• Injection mortar ResiFIX Polyester PYSF

CELO is your specialist for insulation fixings

Years of experience in the development, manufacture and distribution of technical fastening solutions

Different fastening solutions for insulated façades, for light and heavy loads

Countries worldwide where we successfully supply our products

Professional employees working to assist you with outstanding products and service

Contact us

Do you have questions about thermally separated distance mounting installations in ETICS?

Our expert technical team will provide you with comprehensive advice on questions related to your application.
