Multiclip UT for nailers Ø 20 grey

Name: Multiclip UT for nailers Ø 20 grey
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 920UT

Multiclip for gas nailers. Fast fixing in side by side installations.

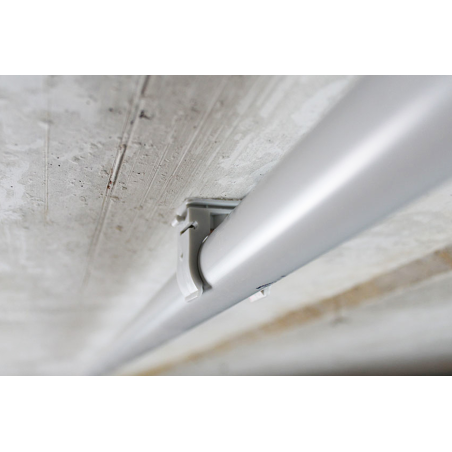

Application image of pipe ring clip UT: plastic pipe on concrete ceiling

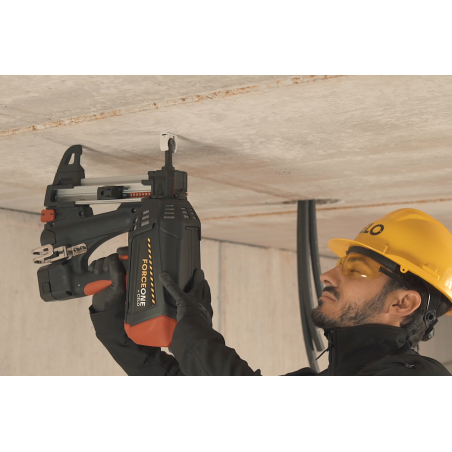

Application image of pipe ring clip UT: fixing with gas nailer FORCE ONE

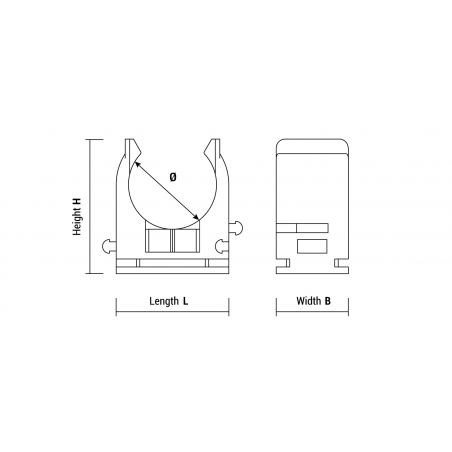

EN - Technical drawing of pipe ring clip UT

A Back to combination list

Reference:

920UT

Colour :

Grey

Length [mm] L:

Width [mm] B:

Clamping range [mm] Ø:

Height [mm] H:

29.5

Material :

HDPE Polyethylene (High-density polyethylene)

Packaging units:

100

Packaging type.:

Box

GTIN:

8421814420006

Download documents

View videos

Reference Description

920UT

CELO's Multiclip UT clamp Ø20 mm is the ideal accessory to install tubes and pipes in series. Due to its side tab, you'll be able to connect them one next to the other safely. There is also an alignment marking for an easier installation.

Although the UT multiclip can be installed with screws, it gets the best performance when being installed with the FORCE ONE+ gas nailer. Additionally, it is now ETA-approved when used as a complete system: FORCE ONE+ gas nailer + XHA nails (minimum homologated length is 22mm) + nailing accessories, guaranteeing safety in your installations.

You can also combine it with channels E2000PB, E2000PG and 1000PVC, or plug FX ø6 and screw ø4,5x35/45 or even a nail plug NP 4x25 mm.

Made of high-density polyethylene (HDPE). It can be used with most other nailers on the market.
