Channel 20x10x1 Length 2 mts

Metal channel profile 20x10
Channel 20x10x1 Length 2 mts
Channel 20x10x1 Length 2 mts
Channel 20x10x1 Length 2 mts
A Back to combination list
Reference:
2000PB
Coating :
Galvanised
Length [mm] L:
2000
Width [mm] B:
20
Profile holes diameter D2:
6
Hole distance [mm] H:
25
Height profile (mm) A:
10
Thickness (mm) S:
1
Aperture profile (mm) C:
10.5
Profile hole sizes (mm) D1xE:
6x12
Packaging units:
20
Packaging type.:
Unpackaged item
GTIN:
8421814429177
Download documents
Reference Description
2000PB
The steel channel 20x10 is made of high quality sendzimir galvanized steel, with special die-cutting holes for fixing directly with the use of the seltapping screw for metal sheets TRBFT. This is a very versatile channel that allows installing both sides. You can install clamps such as the Abranyl range (ABT, ABM and AN) or the MC.
Applications
  • Metal shelves
  • Metal clamps

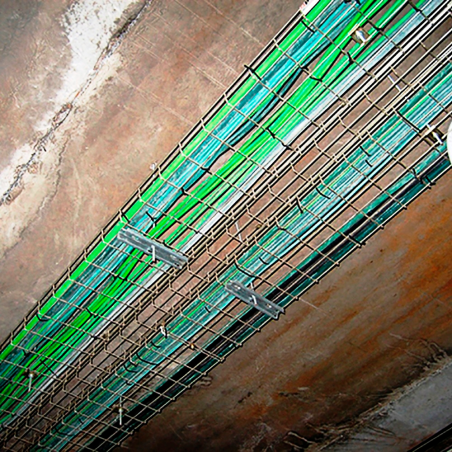

  • Conduit installations
  • Ventilation support
Further specifications

Key features:

  • Metal channel made from galvanized steel DX51 Z200 MA according to UNE-EN103278 standard
  • Regular drilling facilitates the calculation of distances
  • Reduced holes to limit shrinkage
  • Suitable for fixing clamps with channel stud EPR
  • Guaranteed quality thanks to own manufacture
  • Can be used threaded rod M8 or lower
  • CTM approved
  • Hole D1xE Ø6x12 mm
  • Hole D2 Ø6 mm
  • Distance between holes H 25 mm
  • Double die-cutting for standard mounting and special holes for direct fixing with Fastite screws
  • Direct fixings with Fastite screws TRBFT, FTPG and FTBT
  • RoHS approved
