Channel 20x10x0,8 Length 2 mts

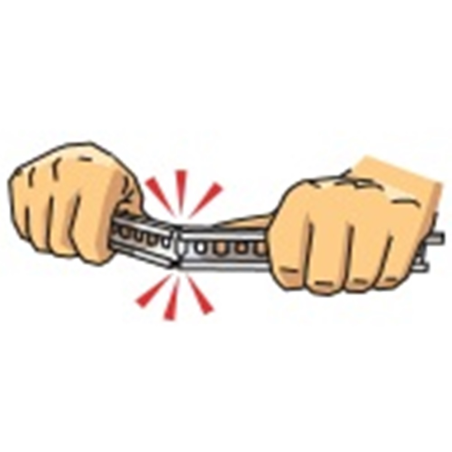

Metal channel 20x10 cutting manually.
Channel 20x10x0,8 Length 2 mts
Channel 20x10x0,8 Length 2 mts
Channel 20x10x0,8 Length 2 mts
Channel 20x10x0,8 Length 2 mts
A Back to combination list
Reference:
2000PG
Coating :
Galvanised
Length [mm] L:
2000
Width [mm] B:
20
Hole distance [mm] H:
20
Height profile (mm) A:
10
Thickness (mm) S:
0.8
Aperture profile (mm) C:
10
Profile hole sizes (mm) E2XF2:
4.5x6
Packaging units:
20
Packaging type.:
Unpackaged item
GTIN:
8421814011754
Download documents
View videos
Reference Description
2000PG

The metal channel 20x10 is made of high quality galvanized steel with special die-cutting holes designed for fixing directly with FT screws (the best thread-rolling screws for sheet metal fixing).

It can be easily manually cut thanks to its precut every 100 mm.

Admits its installation to the wall with the gas nailer.

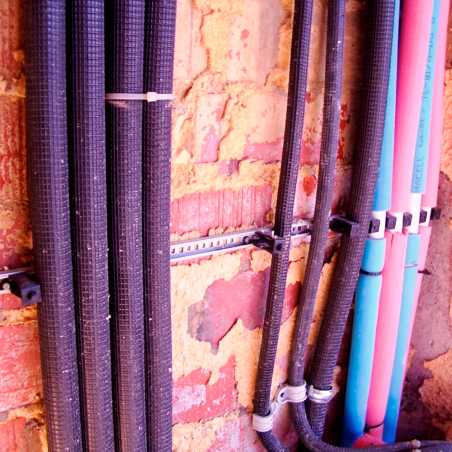

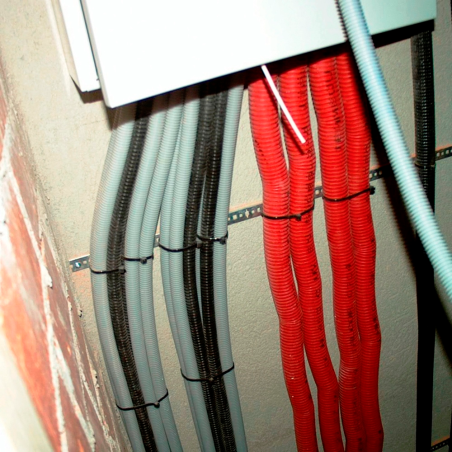

This channel is widely used for electrical and HVAC installations. Double die-cut, the large hole allows M6 rod and the small hole allows M4 rod.

Applications
  • Metal shelves
  • Metal clamps
  • Conduit installations
  • Ventilation support
Further specifications

Key features:

  • Double die-cutting: large hole for M6 threaded rod and small hole for M4 threaded rod
  • Pre-cutting every 100 mm
  • Suitable for fastening with gas nailer
  • Toothed channel to avoid sliding of clamps
  • Direct fixings with Fastite screws TRBFT, FTPG and FTBT
  • Hole D1xE and E1xF1 Ø6x8,5 mm
  • Hole E2xF2 Ø4,5x6 mm
  • Distance between holes H 20 mm
  • RoHS approved
