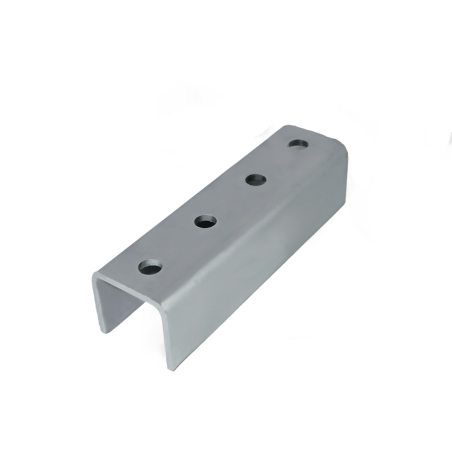

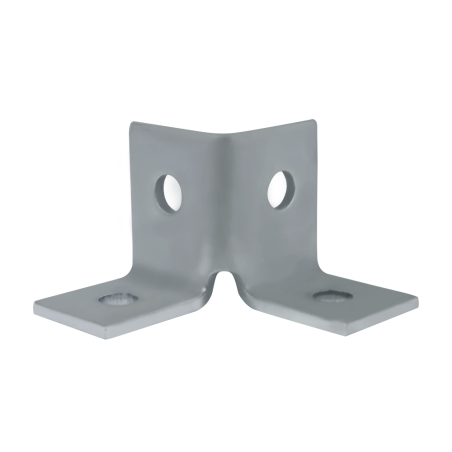

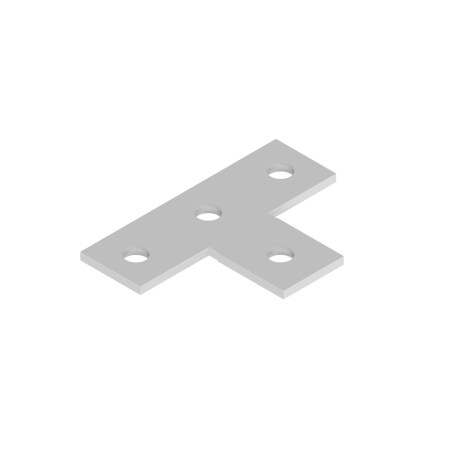

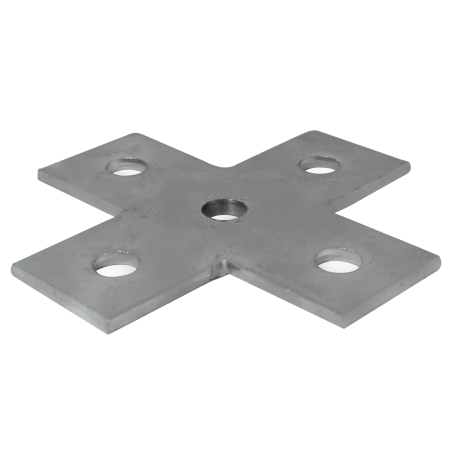

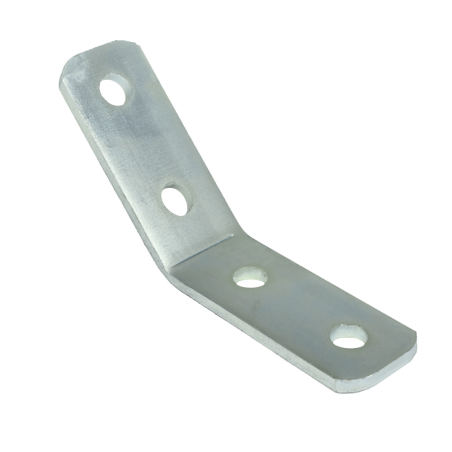

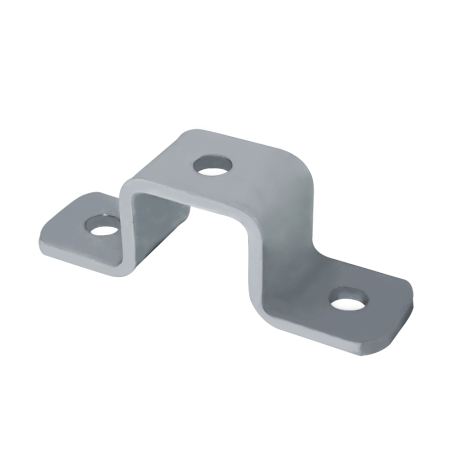

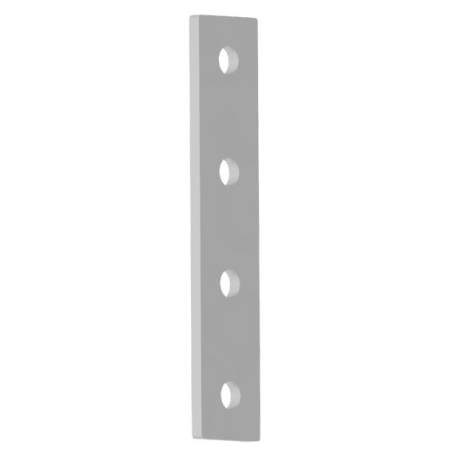

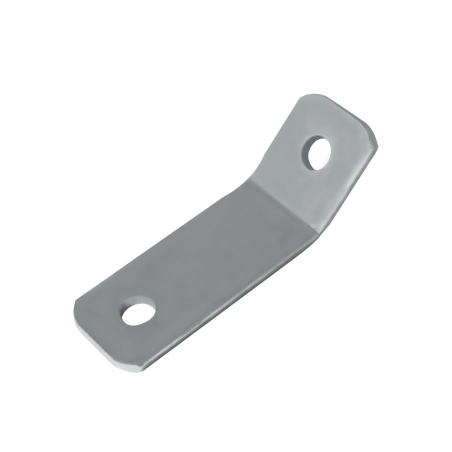

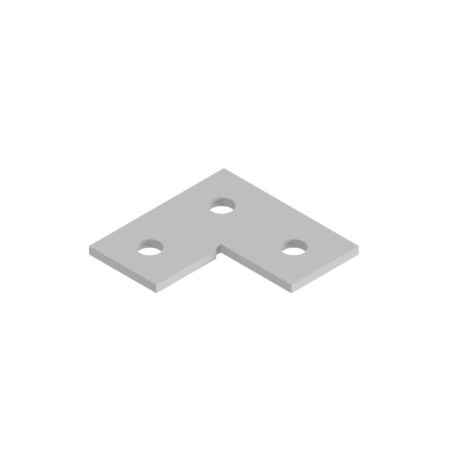

Plates for Strut Profile

Joint plates for Strut Profile

Product overview

CELO's joint plates enable universal assemblies between Strut profiles, making it easy to build modular structures, frames, and technical supports with maximum safety and durability.

Manufactured from S235 steel with a thickness of 5 mm, this joint provides high mechanical strength, with certified loads up to 4.74 kN in tension and 1.42 kN in shear, making it a reliable solution for demanding industrial installations.

The Ø13 mm holes are strategically positioned to allow firm and precise connections with other Strut system components.

Its zinc coating is ideal for dry indoor environments, providing protection against corrosion in non-aggressive atmospheres and ensuring the installation's durability.

Download documents

List of references

Reference

941TESC

941EESC

941CESC

941245ESC

941445ESC

9414ESCC

941TFESC

941UESC

941ULESC

Thickness

Hole diameter

Coating

White zinc plated

Packaging units

Packaging type.

Carton

Applications

Profile strut
Air conditioning pipes
Drainage pipes
Industrial HVAC
Machinery pipe supports
