Chipboard screw VELOX® SIT/TX blue zinc plated, partial thread

High Performance from tip to head

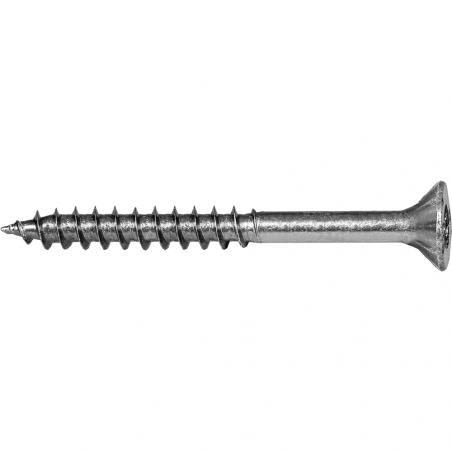

Product image of chipboard screw VELOX® partial thread, blue zinc plated with external underhead miling ribs
Graphic SIT screw - flush finishing in wood
Graphic SIT screw- flush finishing in metal fittings

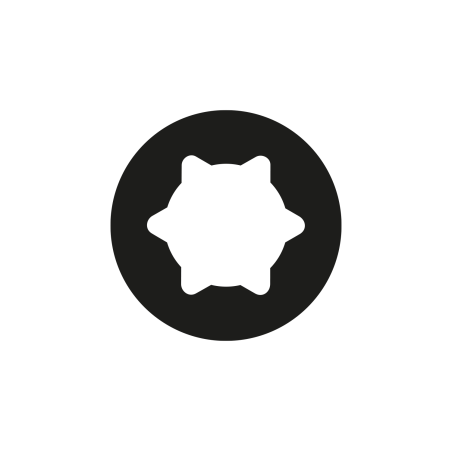

Graphic SIT drive
Product overview

The fast chipboard screw VELOX® SIT/TX made of blue galvanized steel and with partial thread is perfectly suitable for mounting wood doors and windows, fittings, chairs or other wood furniture and obtains an ETA assessment ETA-12/0198 for use in timber construction. The SIT recess guarantees a perfect power transfer, fast mounting and a long-lasting SIT bit. Due the conial recess the screw will be centred (no tumbling) and sticks on the bit and improves your working comfort. Alternatively TX bits can also be used (without the mentioned advantages). Your advantage: only one bit size needed for four screw diameters!

Show more
Download documents
List of references
Filters
Screw diameter [mm]
3
3.5
4
4.5
5
6
Close
Screw length [mm]
35
40
45
50
60
70
80
90
100
120
140
160
180
200
Close
Recess type
SIT/TX 10
SIT/TX 20
SIT/TX 30
Close
Head diameter [mm]
6
7
8
9
10
12
Close
Head height [mm]
1.8
2
2.35
2.55
2.85
3.85
Close
Reference
d
J
9335VLOXSP
9340VLOXSP
9345VLOXSP
93535VLOXSP
93545VLOXSP
93540VLOXSP
93550VLOXSP
9435VLOXSP
9440VLOXSP
9445VLOXSP
9450VLOXSP
9460VLOXSP
9470VLOXSP
94540VLOXSP
94545VLOXSP
94550VLOXSP
94560VLOXSP
94570VLOXSP
94580VLOXSP
9540VLOXSP
9545VLOXSP
9550VLOXSP
9560VLOXSP
9570VLOXSP
9580VLOXSP
9590VLOXSP
95100VLOXSP
95120VLOXSP
9650VLOXSP
9660VLOXSP
9670VLOXSP
9680VLOXSP
9690VLOXSP
96100VLOXSP
96120VLOXSP
96140VLOXSP
96160VLOXSP
96180VLOXSP
96200VLOXSP
Diameter [mm]
d
J
3
3
3
3.5
3.5
3.5
3.5
4
4
4
4
4
4
4.5
4.5
4.5
4.5
4.5
4.5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
Length [mm]
d
J
35
40
45
35
45
40
50
35
40
45
50
60
70
40
45
50
60
70
80
40
45
50
60
70
80
90
100
120
50
60
70
80
90
100
120
140
160
180
200
Screw diameter [mm]
d
J
3
3
3
3.5
3.5
3.5
3.5
4
4
4
4
4
4
4.5
4.5
4.5
4.5
4.5
4.5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
Screw length [mm]
d
J
35
40
45
35
45
40
50
35
40
45
50
60
70
40
45
50
60
70
80
40
45
50
60
70
80
90
100
120
50
60
70
80
90
100
120
140
160
180
200
Recess type
d
J
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
Head diameter [mm]
d
J
6
6
6
7
7
7
7
8
8
8
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
12
12
12
12
12
12
12
12
12
12
12
Head height [mm]
d
J
1.8
1.8
1.8
2
2
2
2
2.35
2.35
2.35
2.35
2.35
2.35
2.55
2.55
2.55
2.55
2.55
2.55
2.85
2.85
2.85
2.85
2.85
2.85
2.85
2.85
2.85
3.85
3.85
3.85
3.85
3.85
3.85
3.85
3.85
3.85
3.85
3.85
Packaging units
d
J
1000
500
500
500
500
500
500
500
500
500
500
250
200
500
250
250
250
200
100
500
250
250
250
200
100
100
50
100
250
200
100
100
50
50
100
100
100
100
100
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
A
t
39 / 39 references
Applications
  • Wood doors
  • Wood windows
  • Fittings
  • Chairs
  • Wood frames
  • Wood furniture
Further specifications

Key features:

  • ETA-approved product for your safety
  • Largely improved working comfort; the conical recess centers the screw (no tumbling) and sticks on the bit|Patented tip thread area
  • SIT® recess (=AW recess from Würth)
  • Long-lasting SIT® bit
  • No damage to the screw head/zinc coating
  • Perfect power transfer
  • Only one bit for four screw diameters- you save time and costs!
  • Can also be used with TX-bits if no SIT®-bit is available
  • Galvanized; blue passivated
  • Especially well-suited for nylon plugs
  • Patented thread reduces splitting as well as ­setting torque, which provides a perfect appearance and a longer battery life
  • With internal underhead milling pockets - perfect for flush finishing in metal fittings
  • With external underhead milling ribs - perfect for wood and metal fittings becaus of flush fitting and fewer wood shavings

Base materials:

  • Chipboards
  • Wood
