Window frame screw FBS 7,5-112 countersunk head (Ø 11 mm, TX30), zinc plated

Name: Window frame screw FBS 7,5-112 countersunk head (Ø 11 mm, TX30), zinc plated
Brand: CELO Fixings technology - Fasteners and fixings manufacturer
SKU: 975112FBS

Specialised screw for window mounting

Product image of window frame screw FBS with countersunk head

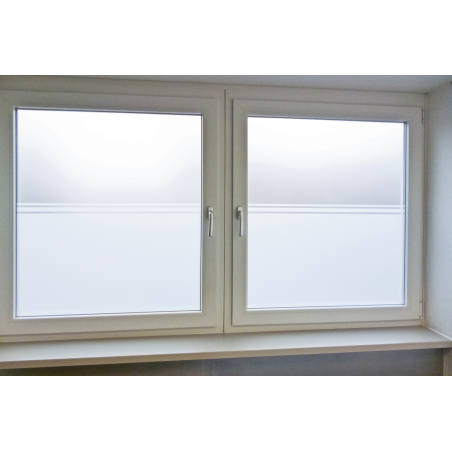

Application image of window frame screw FBS: Two windows with plastic frame

Application image of window frame screw FBS: Floor-length window with sliding door on the beach

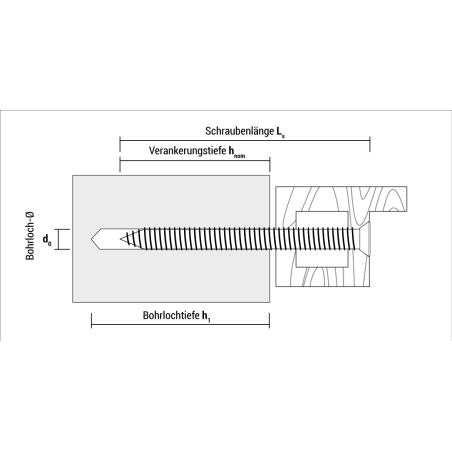

EN - Technical drawing of window frame screw FBS

A Back to combination list

Reference:

975112FBS

Coating :

Galvanised

Material :

Steel

Head type Head:

Countersunk head

Recess type Drive:

TX30

Drill hole diameter [mm] d₀:

Screw diameter [mm] d_s:

7.5

Head diameter [mm] d_h:

Screw length [mm] L_s:

112

Clearance hole [mm] d_f:

6.2

Packaging units:

100

Packaging type.:

Box

GTIN:

4001990498798

Download documents

Reference Description

975112FBS

The window frame screw FBS 7,5-112 countersunk head (Ø 11 mm, TX30) is suitable for constraint force free distance mounting. A special zinc plated thread at the screw tip with reduced diameter reduces the setting torque and therefore allows a longer battery life of your cordless screwdriver. For quick and easy installation of many different window types in a large number of base materials. FBS is recommended for installation of metal and plastic window frames. In this process the external underhead milling ribs ensure flush finishing in all common frame materials.

Applications
